KnowlesUnited States

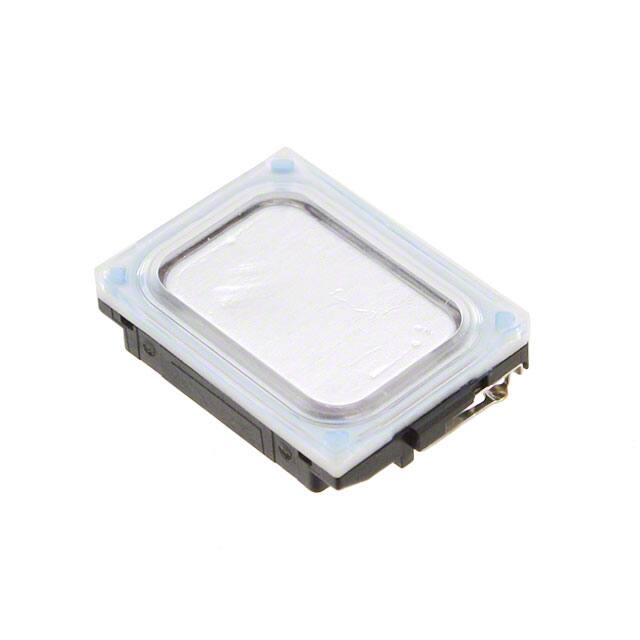

SPEAKER 6OHM 1W TOP PORT 74DB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 1.2 W |
| Power - Rated | 1 W |
| AC and DC characteristics | |
| Frequency Range | 300 Hz ~ 20 kHz |
| Frequency - Self Resonant | 500Hz |
| Impedance | 6 Ohms |
| Environment and package | |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Package | Tray |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Other | |
| Efficiency - dBA | 74.00 |
| Efficiency - Testing | 1W/10mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Ingress Protection | Waterproof |
| Material - Cone | Silicone |
| Material - Magnet | Nd-Fe-B |
| Mfr | Knowles |
| Port Location | Top |
| Product Status | Obsolete |
| Ratings | - |
| Series | SC-Cobra-WP |
| Shape | Rectangular |
| Technology | Magnetic |
| Termination | Spring Type |
| Type | General Purpose |
