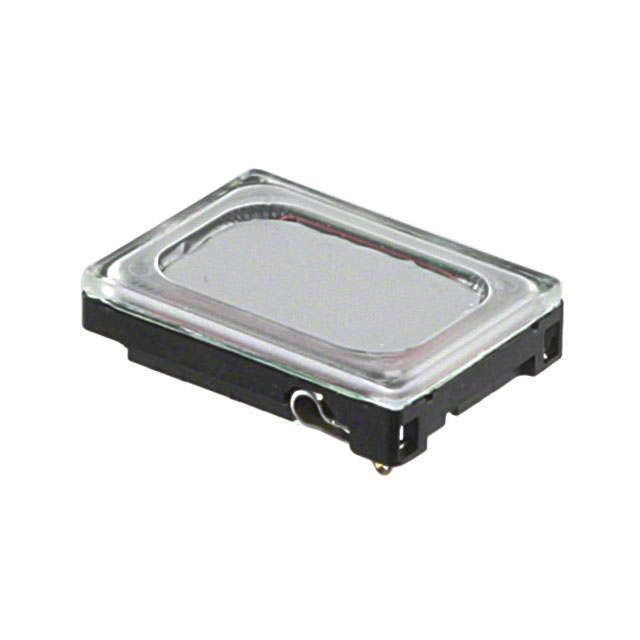

SPEAKER 8OHM 500MW TOP PORT 73DB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 1 W |
| Power - Rated | 500 mW |
| AC and DC characteristics | |
| Frequency Range | 300 Hz ~ 20 kHz |
| Frequency - Self Resonant | 800Hz |
| Impedance | 8 Ohms |
| Environment and package | |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Package | Tray |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Other | |
| Efficiency - dBA | 73.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sensitivity |
| Ingress Protection | - |
| Material - Cone | Polyester |
| Material - Magnet | Nd-Fe-B |
| Mfr | Knowles |
| Port Location | Top |
| Product Status | Obsolete |
| Ratings | - |
| Series | - |
| Shape | Rectangular |
| Technology | Magnetic |
| Termination | Spring Type |
| Type | General Purpose |
