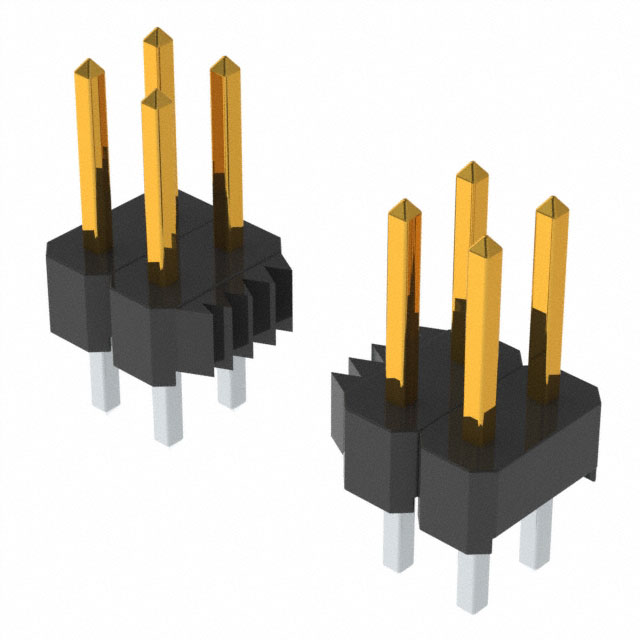

2370-6121-TG
3MUnited States

2370-6121-TG

ActiveHeaders, Male Pins

CONN HEADER VERT 70POS 2.54MM

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Positions70
Rows2
Pitch2.54 mm
GenderMale
Current rating3 AMax
Power
Current Rating (Amps)3A
Voltage Rating-
Environment and package
Insulation Height0.100" (2.54mm)
Mated Stacking Heights-
Mounting TypeThrough Hole
Operating Temperature-55°C ~ 105°C
PackageBulk
Other
Applications-
Base Product Number2370
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin-Lead
Contact Finish Thickness - Mating10.0µin (0.25µm)
Contact Finish Thickness - Post100.0µin (2.54µm)
Contact Length - Mating0.230" (5.84mm)
Contact Length - Post0.120" (3.05mm)
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation MaterialThermoplastic, Glass Filled
Material Flammability RatingUL94 V-0
Mfr3M
Number of Positions70
Number of Positions LoadedAll
Number of Rows2
Overall Contact Length0.450" (11.43mm)
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
Series2300
ShroudingUnshrouded
StyleBoard to Board or Cable
TerminationSolder
