OupiinTaiwan, China

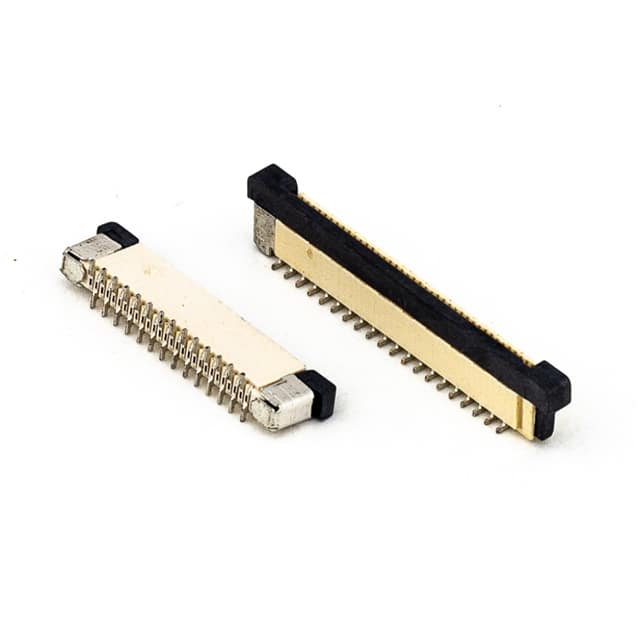

FFC/FPC SOCKET, .5MM PITCH, 50 P
All alternatives
View full reportTechnical parameters
Key specs
Positions50
Pitch500 µm
Current rating500 mAMax
| Power | |
|---|---|
| Current Rating (Amps) | 0.5A |
| Voltage Rating | 50V |
| Environment and package | |
| Height Above Board | 0.193" (4.90mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C~85°C |
| Package | Tape & Reel (TR) |
| Other | |
| Actuator Color | - |
| Actuator Material | - |
| Base Product Number | C50TD3AT |
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish | Tin |
| Contact Finish Thickness | 100.0µin (2.54µm) |
| Contact Material | Phosphor Bronze |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm |
| Flat Flex Type | FFC, FPC |
| Housing Color | - |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Locking Feature | - |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | - |
| Mfr | Oupiin |
| Number of Positions | 50 |
| Pitch | 0.020" (0.50mm) |
| Product Status | Active |
| Series | 2345-C |
| Termination | Solder |
