Bourns Inc.United States
FIXED IND 470UH 3.8A 130 MOHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance470 µH
Rated current3.8 AMax
DC resistance130 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 3.8 A |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 1 kHz |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Radial, Vertical (Open) |

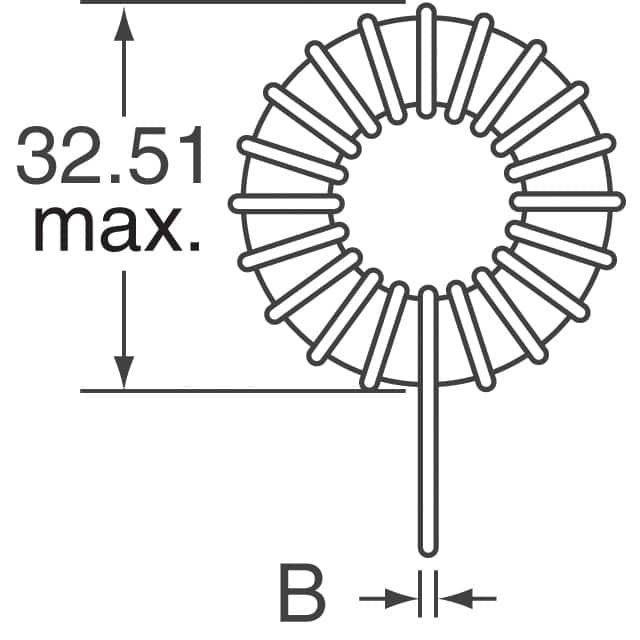

| Size / Dimension | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) |
| Supplier Device Package | - |
| Other | |
| Base Product Number | 2320 |
| DC Resistance (DCR) | 130mOhm Max |
| Inductance | 470 µH |
| Material - Core | Iron Powder |
| Mfr | Bourns Inc. |
| Product Status | Active |
| Q @ Freq | - |
| Ratings | - |
| Series | 2300 |
| Shielding | Unshielded |
| Tolerance | ±15% |
| Type | Toroidal |
