TE ConnectivitySwitzerland

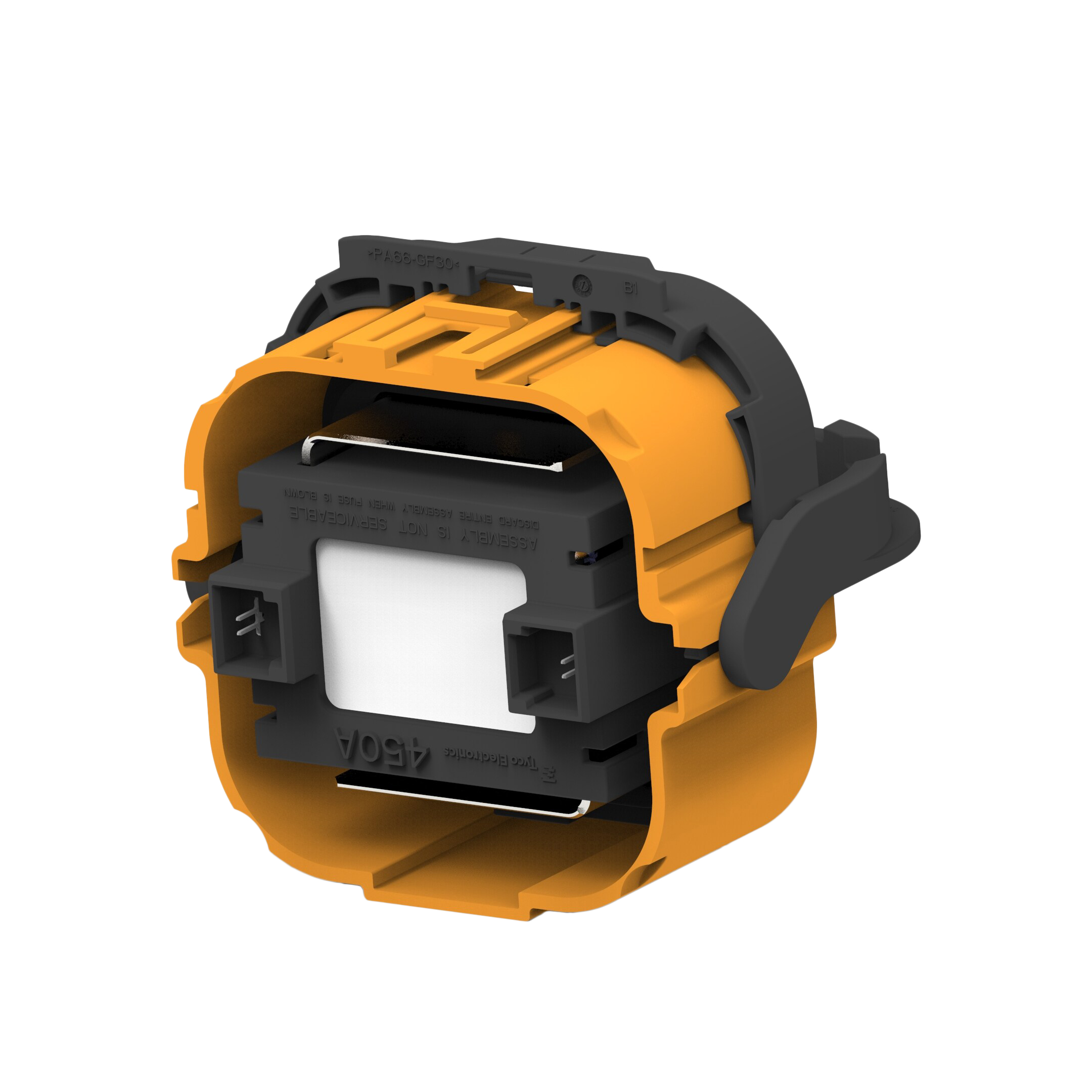

MSD,REC HSG ASSY,450A,V0,M8
All alternatives
View full reportTechnical parameters
Key specs
GenderFemale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | 750V |
| Environment and package | |
| Insulation Height | - |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 65°C |
| Package | Bulk |
| Other | |
| Applications | - |
| Base Product Number | 2315855 |
| Connector Type | Receptacle |
| Contact Finish - Mating | - |
| Contact Finish - Post | - |
| Contact Finish Thickness - Mating | - |
| Contact Finish Thickness - Post | - |
| Contact Length - Post | - |
| Contact Material | - |
| Contact Shape | - |
| Contact Type | - |
| Fastening Type | - |
| Features | Mounting Flange |
| Ingress Protection | - |
| Insulation Color | Orange |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mfr | TE Connectivity Deutsch Connectors |
| Number of Positions | - |
| Number of Positions Loaded | - |
| Pitch - Mating | - |
| Product Status | Active |
| Row Spacing - Mating | - |
| Series | - |
| Style | Board to Board or Cable |
| Termination | Solder |
