2291121
Phoenix ContactGermany

2291121

ActiveInterface Modules

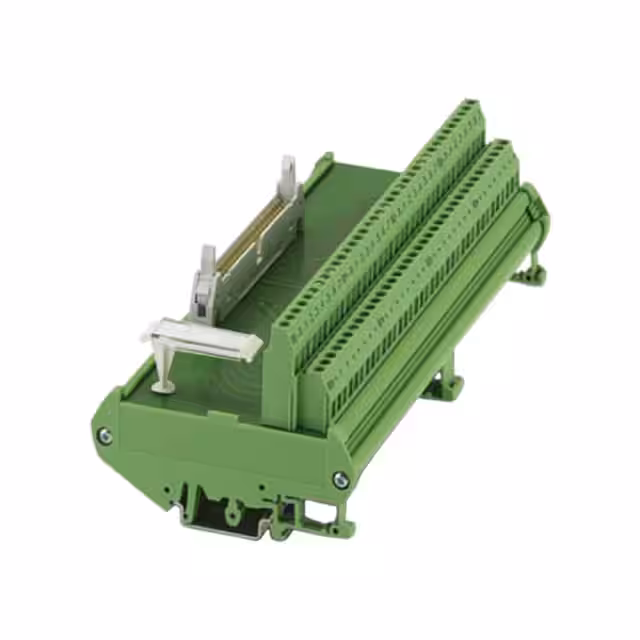

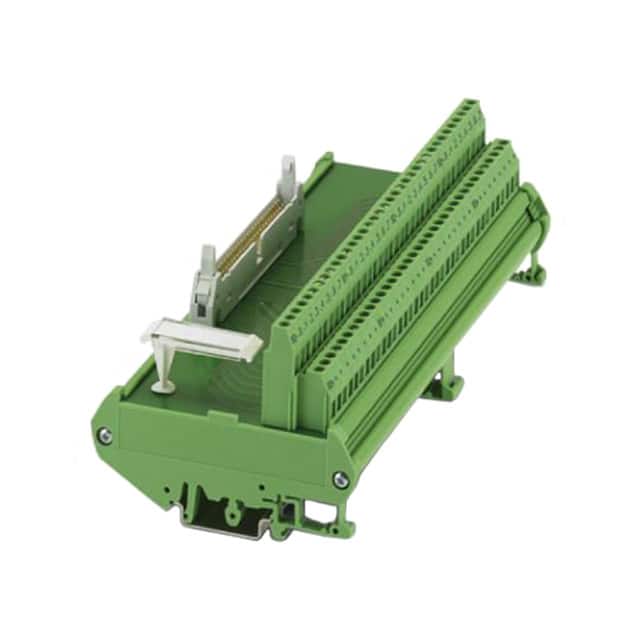

INTERFACE MOD HDR 50POS 12-24AWG

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Per Contact)1 A
Voltage - Rated60VDC
Environment and package
Operating Temperature-20°C~50°C
PackageBulk
Other
Control Side Cable RetainerLatches
Control Side ConnectionRectangular, Male
FeaturesLabel Holder
Length7.559" (192.00mm)
MfrPhoenix Contact
Positions / Poles50
Process Side ConnectionTerminal Blocks - Screw Connection
Product StatusActive
SeriesVARIOFACE, FLKM
Width3.543" (90.00mm)
Wire Gauge12-24 AWG

Documents

No documents are linked to this part yet.
