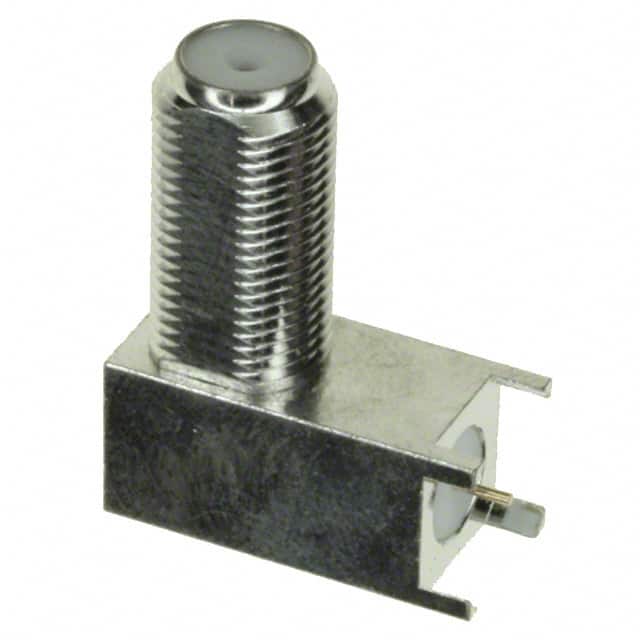

CONN F RCPT R/A 75 OHM PCB
All alternatives
View full reportTechnical parameters
Key specs
Connector styleType F
GenderFemale
Impedance75 Ω
Max frequency2 GHzMax
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 2 GHz |
| Impedance | 75Ohm |
| Environment and package | |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Operating Temperature | - |
| Package | Bag |
| Other | |
| Base Product Number | 2221 |
| Body Finish | Tin |
| Body Material | Brass |
| Cable Group | - |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | F Type |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | - |
| Housing Color | Silver |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 500 |
| Mfr | Amphenol RF |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Solder |
