AmphenolUnited States

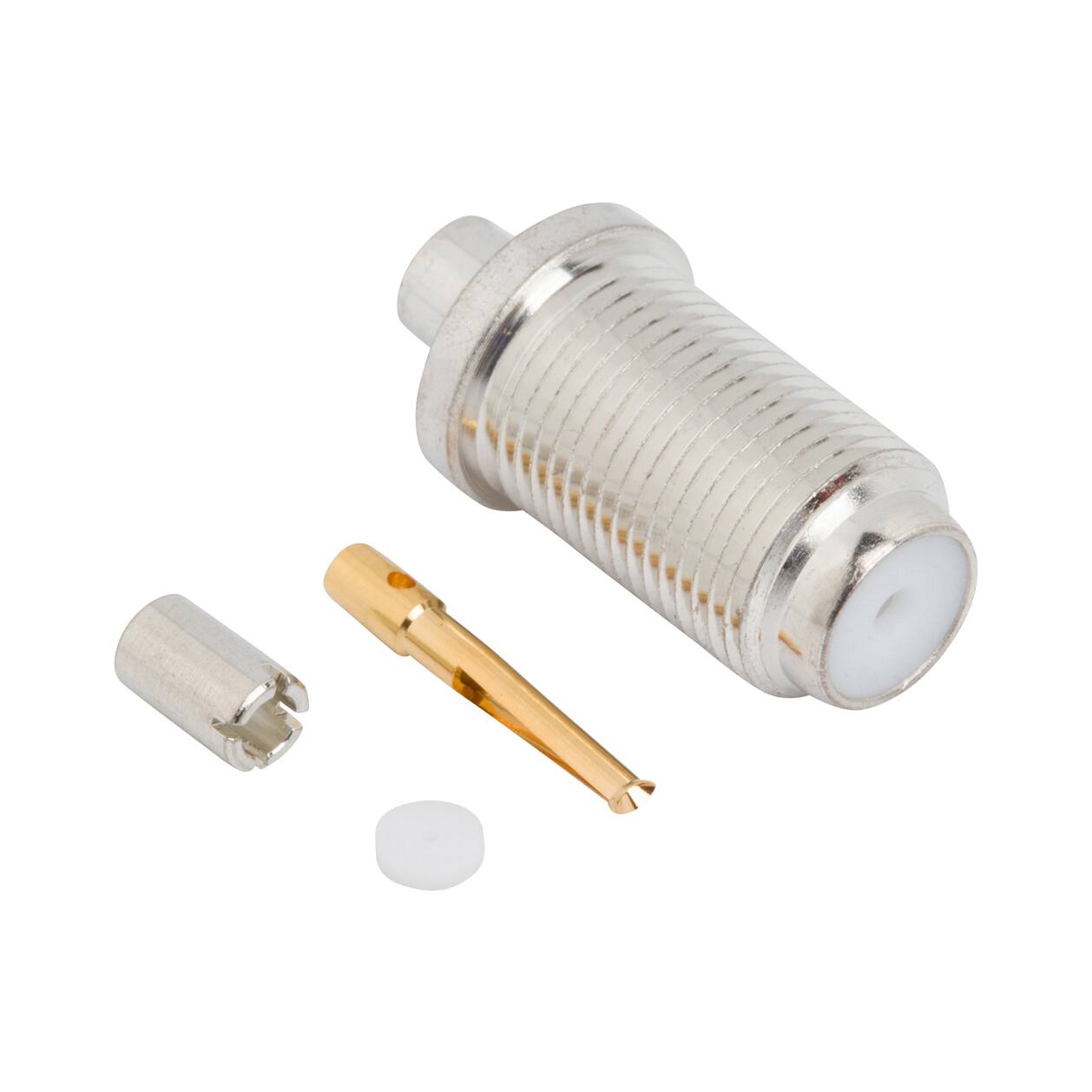

CONN F JACK STR 75OHM SOLDER
All alternatives
View full reportTechnical parameters
Key specs
Connector styleType F
GenderFemale
Impedance75 Ω
Max frequency2 GHzMax
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 2 GHz |
| Impedance | 75Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Base Product Number | 2221 |
| Body Finish | Tin |
| Body Material | Brass |
| Cable Group | RG-405 (.085", .086" Semi Rigid) |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | F Type |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | - |
| Housing Color | Silver |
| Includes | 4 pcs - 1 Connector, 1 Barrel, 1 Contact, 1 Insulator |
| Ingress Protection | - |
| Insertion Loss | 0.05dB |
| Mating Cycles | 500 |
| Mfr | Amphenol RF |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Solder |
