TE ConnectivitySwitzerland

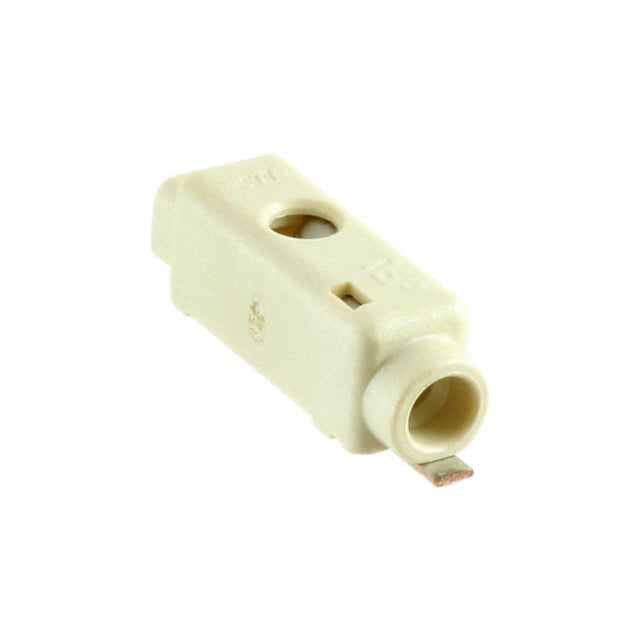

CONN SSL RECEPTACLE 1POS SOLDER
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 5A, 9A |
| Voltage Rating | 600V |
| Environment and package | |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -40°C~105°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Other | |
| Base Product Number | 2213301 |
| Connector Type | Receptacle, Poke-In Wire |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Fastening Type | - |
| Features | - |
| Housing Color | White |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Ingress Protection | - |
| Mating Cycles | - |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 1 |
| Pitch | - |
| Product Status | Obsolete |
| Series | - |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Wire Gauge | 18 AWG, 20 AWG, 22 AWG |
