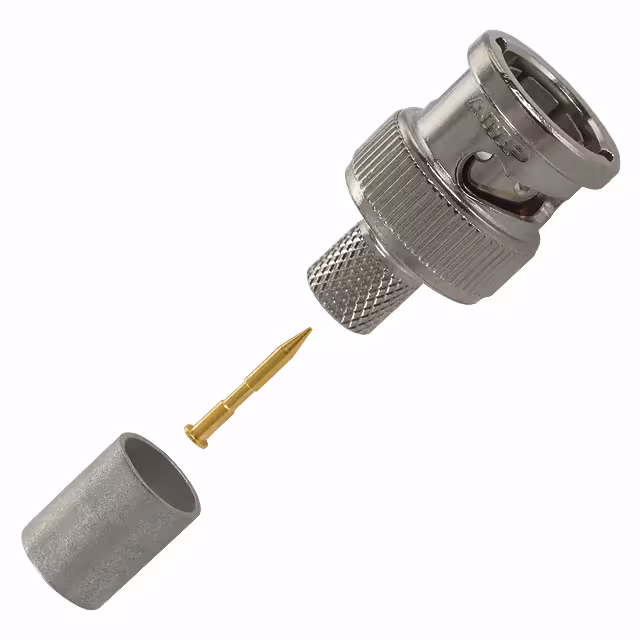

221185-5
TE ConnectivitySwitzerland

221185-5

ObsoleteCoaxial Connector (RF) Assemblies

CONN BNC PLUG STR 75 OHM CRIMP

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Connector styleBNC
GenderMale
Impedance75 Ω
Max frequency2 GHzMax
Power
Voltage Rating500 V
AC and DC characteristics
Frequency - Max2 GHz
Impedance75Ohm
Environment and package
Mounting Feature-
Mounting TypeFree Hanging (In-Line)
Operating Temperature-55°C~85°C
PackageBulk
Other
Base Product Number221185
Body FinishNickel
Body MaterialZinc
Cable GroupBelden 8281, 8281F, 9231
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleBNC
Connector TypePlug, Male Pin
Contact TerminationCrimp
Dielectric MaterialPolyethylene (PE)
Fastening TypeBayonet Lock
Features-
Housing ColorSilver
Includes-
Ingress Protection-
Insertion Loss0.15dB
Mating Cycles500
MfrTE Connectivity AMP Connectors
Number of Ports1
Product StatusObsolete
Series-
Shield TerminationCrimp
