Littelfuse Inc.United States

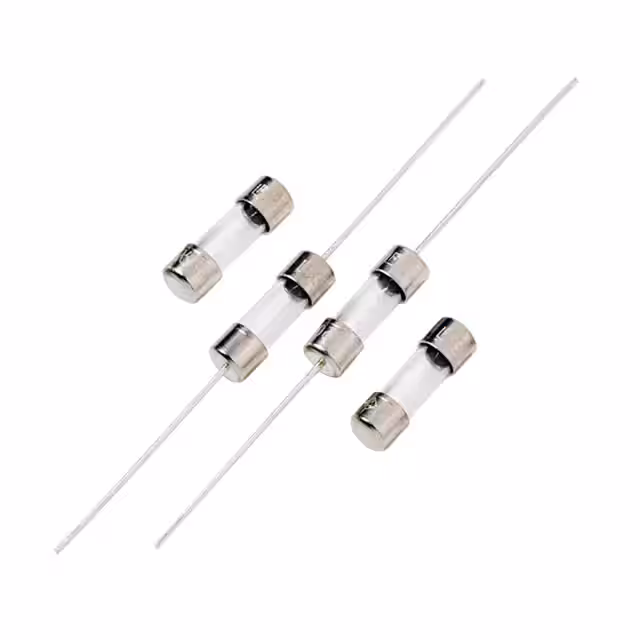

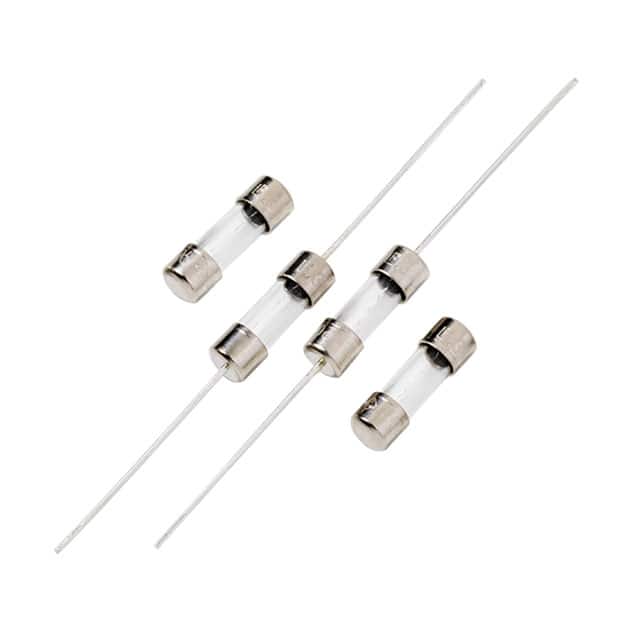

FUSE GLASS 2A 300VAC 2AG
All alternatives
View full reportTechnical parameters
Key specs
Rated current2 A
Rated voltage300 V
Response timeFast
Breaking capacity100 A
| Power | |
|---|---|
| Breaking Capacity @ Rated Voltage | 100A |
| Current Rating (Amps) | 2 A |
| Voltage Rating - AC | 300 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Package / Case | 2AG, 5mm x 15mm (Axial) |
| Size / Dimension | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) |
| Other | |
| Approval Agency | CE, CSA, UL |
| Color | - |
| DC Cold Resistance | 0.0497 Ohms |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 1.5 |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Response Time | Fast Blow |
| Series | 2206 |
