TE ConnectivitySwitzerland

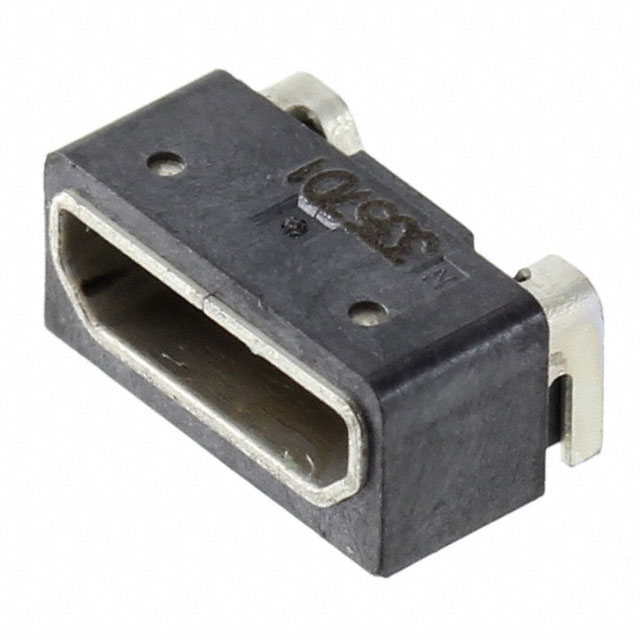

CONN RCPT USB2.0 MICRO B SMD R/A
All alternatives
View full reportTechnical parameters
Key specs
Positions5
GenderFemale
Current rating1.8 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 0.5A, 1A, 1.8A |
| Voltage - Rated | 30V |
| Environment and package | |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -30°C ~ 85°C |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Other | |
| Base Product Number | 2173157 |
| Connector Type | USB - micro B |
| Contact Finish | Gold |
| Features | Pick and Place, Solder Retention |
| Gender | Receptacle |
| Ingress Protection | Splash Proof |
| Insulation Color | - |
| Material Flammability Rating | - |
| Mating Cycles | 10000 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | - |
| Specifications | USB 2.0 |
| Termination | Solder |
