MolexUnited States

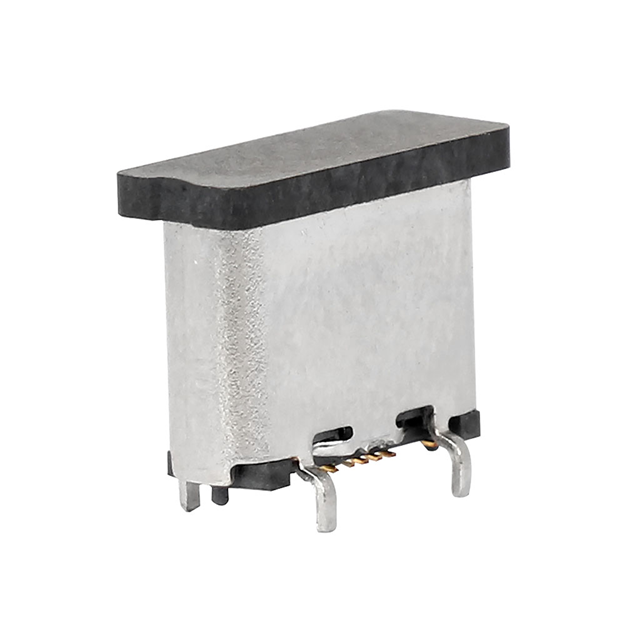

CONN RCPT USB2.0 TYP C 24POS SMD
All alternatives
View full reportTechnical parameters
Key specs
Positions24
GenderFemale
Current rating5 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 5A |
| Voltage - Rated | 30VAC/DC |
| Environment and package | |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount, Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Other | |
| Base Product Number | 217182 |
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Features | - |
| Gender | Receptacle |
| Ingress Protection | - |
| Insulation Color | - |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mfr | Molex |
| Number of Contacts | 24 (16+8 Dummy) |
| Number of Ports | 1 |
| Product Status | Active |
| Series | 217182 |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
Documents
No documents are linked to this part yet.
