Alpha WireUnited States
2152

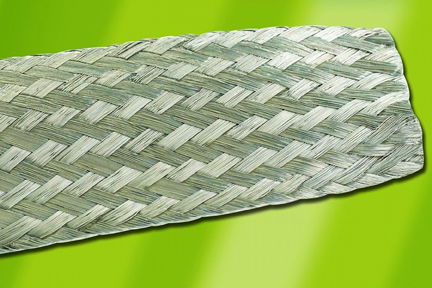

ActiveAlpha braid is an exceptional low resistance way to create a point-to-point ground strap. In retrofit applications braid is an ideal way to install additional shielding to your cable.
All alternatives
View full reportTechnical parameters
| 3)California Proposition 65 | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| a) 100 ft. | 9 x 4.5 x 3.5, Continuous |
| a) Material | Tinned Copper, per ASTMB-33 and CID-A-A-59551 |
| a) Nominal ID | 25/32 |
| b) 500 ft. | 12 x 6 x 3.5, 3 Pieces Max., 25 ft. Min. Length |
| b) AWG of Ends | 34 |
| b) Stranding | Solid |
| c) Diameter | 0.0063" |
| c) Number of Carriers | 48 |
| d) Nominal Percent Coverage | 95 |
| e) Total Number of Ends | 528 |
| f) Approx. Equiv. AWG | 7 |
| g) Approx. Ampacity | 85 Amps |
| h) Federal Spec Number | N/A |
