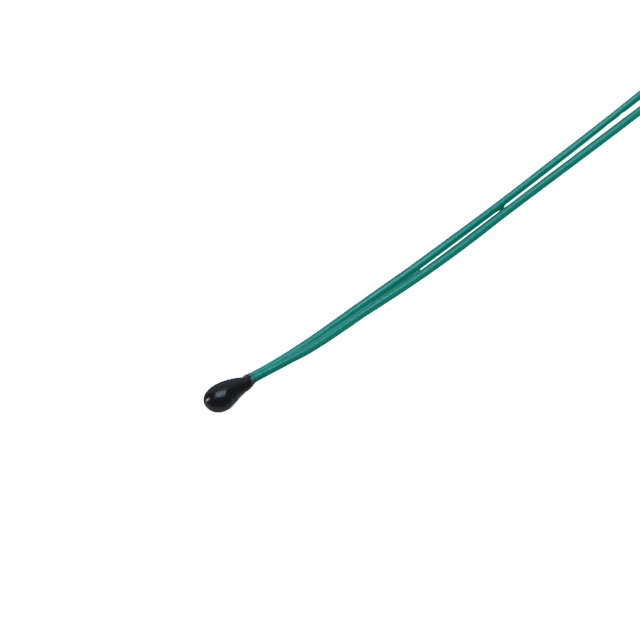

NTC EPOXY - 3600 40MM 10K 1%
All alternatives
View full reportTechnical parameters
Key specs
Tolerance1 %
| Environment and package | |
|---|---|
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 135°C |
| Package | Bag |
| Package / Case | Bead |
| Other | |
| B0/50 | 3600K |
| B25/100 | - |
| B25/50 | - |
| B25/75 | - |
| B25/85 | - |
| Base Product Number | 215270 |
| B Value Tolerance | ±1% |
| Length - Lead Wire | 1.30" (33.00mm) |
| Mfr | Molex |
| Product Status | Active |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | ±1% |
| Series | 215270 |
