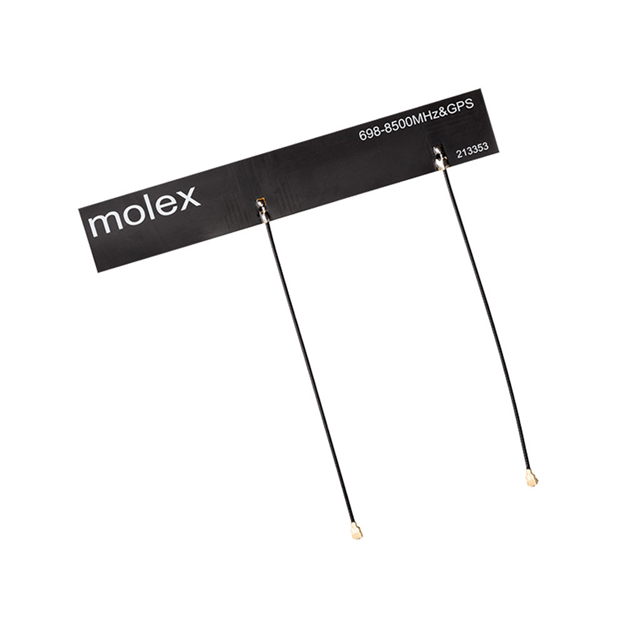

LTE/GPS COMBO FLEXIBLE ANTENNA 1
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Center/Band) | 829MHz, 1.45GHz, 1.6GHz, 1.5605GHz, 1.5745GHz, 1.602GHz, 2.2GHz, 3.75GHz, 4.7GHz, 7.2GHz |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 960MHz, 1.4GHz ~ 1.5GHz, 1.5GHz ~ 1.7GHz, 1.558GHz ~ 1.563GHz, 1.573GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz, 1.7GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.9GHz ~ 8.5GHz |
| Gain | 2.5dBi, 2.3dBi, 2.3dBi, 5.4dBi, 5.4dBi, 4.5dBi, 7dBi |
| Environment and package | |
| Height (Max) | 0.004" (0.10mm) |
| Mounting Type | Adhesive |
| Package | Bag |
| Other | |
| Antenna Type | Flat Patch |
| Applications | Beidou, GLONASS, GPS, LTE, UWB |
| Base Product Number | 213353 |
| Features | Cable - 150mm |
| Ingress Protection | - |
| Mfr | Molex |
| Number of Bands | 10 |
| Product Status | Active |
| Return Loss | -5dB, -10dB |
| RF Family/Standard | Cellular, Navigation |
| Series | 213353 |
| Termination | U.FL (UMCC), IPEX MHF |
| VSWR | - |
