2108852-1
TE ConnectivitySwitzerland

2108852-1

ActiveRF Antennas

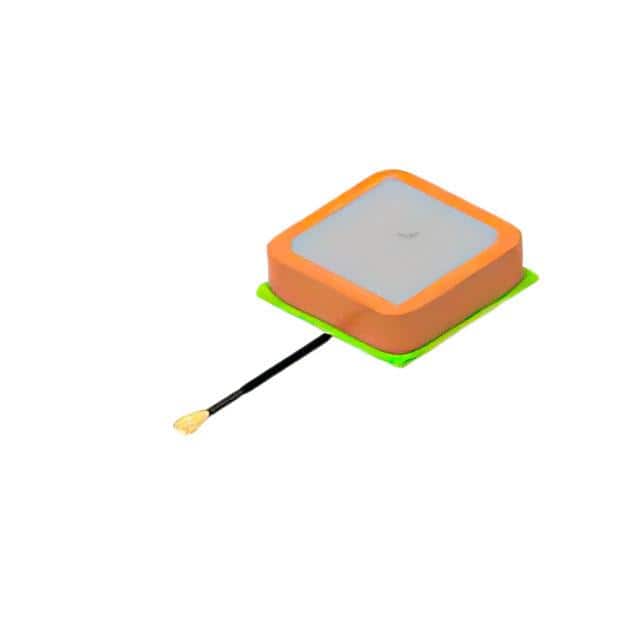

ACTIVE ANT.,MHF,100MM,L1+G1

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

AC and DC characteristics
Frequency (Center/Band)1.5845GHz
Frequency GroupUHF (1GHz ~ 2GHz)
Frequency Range1.559GHz ~ 1.61GHz
Gain34dBic
Environment and package
Height (Max)0.413" (10.50mm)
Mounting TypeAdhesive
PackageTray
Other
Antenna TypeFlat Patch
ApplicationsGNSS
FeaturesLNA, Filter
Ingress Protection-
MfrTE Connectivity AMP Connectors
Number of Bands1
Product StatusActive
Return Loss-
RF Family/StandardNavigation
Series-
TerminationRP-SMA Male
VSWR3.3
