TE ConnectivitySwitzerland

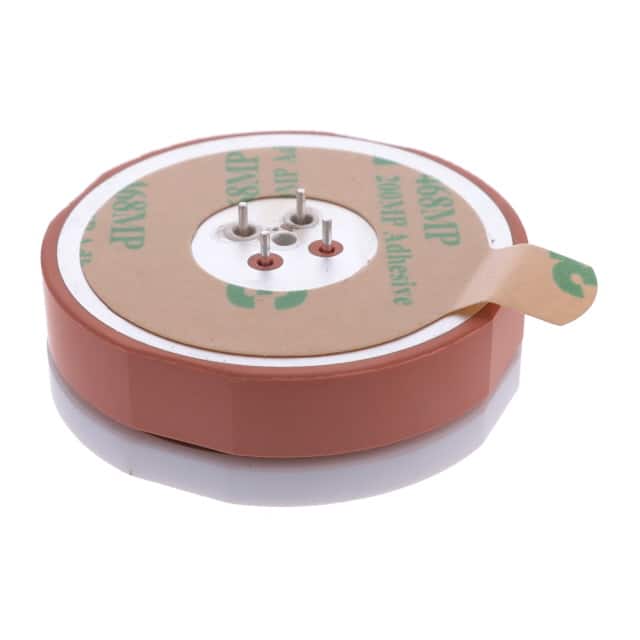

CERAMIC PATCH ANT, SMD, L1+G1 &
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Center/Band) | 1.5845GHz |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.559GHz ~ 1.61GHz |
| Gain | 5.1dBic, 5.6dBic |
| Environment and package | |
| Height (Max) | 0.512" (13.00mm) |
| Mounting Type | Adhesive |
| Package | Tray |
| Other | |
| Antenna Type | Flat Patch |
| Applications | GNSS |
| Features | - |
| Ingress Protection | - |
| Mfr | TE Connectivity AMP Connectors |
| Number of Bands | 2 |
| Product Status | Active |
| Return Loss | - |
| RF Family/Standard | Navigation |
| Series | - |
| Termination | - |
| VSWR | 1.3, 1.4 |
