TE ConnectivitySwitzerland

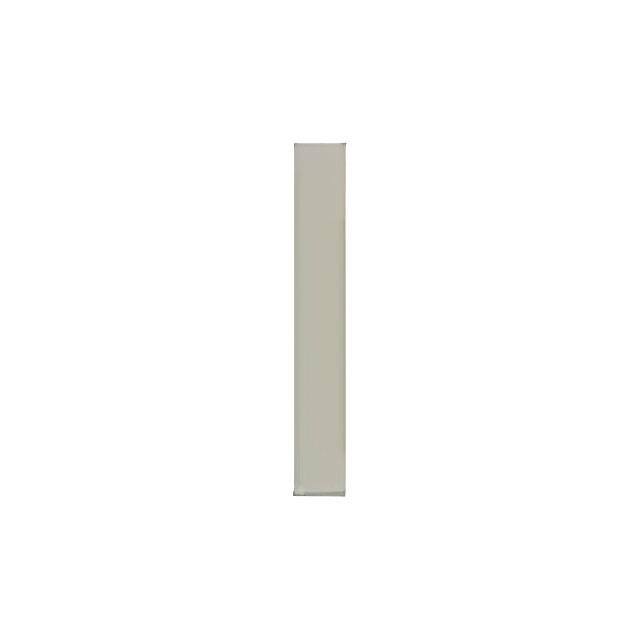

CHIP ANT., SMD, L1+G1
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Center/Band) | 1.5845GHz |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.559GHz ~ 1.61GHz |
| Gain | 2.9dBi |
| Environment and package | |
| Height (Max) | 0.059" (1.50mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Other | |
| Antenna Type | Chip |
| Applications | GNSS |
| Features | - |
| Ingress Protection | - |
| Mfr | TE Connectivity AMP Connectors |
| Number of Bands | 1 |
| Product Status | Active |
| Return Loss | - |
| RF Family/Standard | Navigation |
| Series | - |
| Termination | - |
| VSWR | 1.7 |
