TE ConnectivitySwitzerland
CONN RCPT MALE 9POS GOLD SOLDER
All alternatives
View full reportTechnical parameters
Key specs
Positions9
GenderMale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | 250VAC/DC |
| Environment and package | |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Tray |

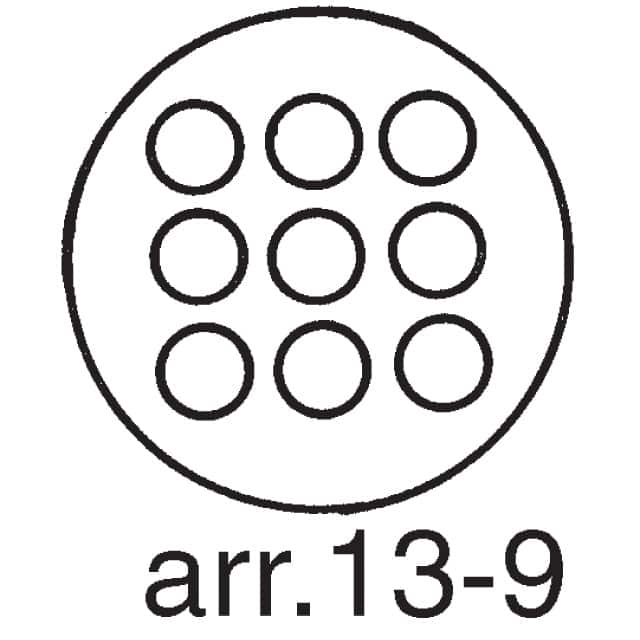

| Shell Size - Insert | 13-9 |
| Shell Size, MIL | - |
| Other | |
| Applications | - |
| Backshell Material, Plating | - |
| Base Product Number | 208223 |
| Cable Opening | - |
| Color | - |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Material | Brass |
| Fastening Type | Threaded |
| Features | - |
| Ingress Protection | - |
| Insert Material | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 9 |
| Orientation | A |
| Primary Material | Plastic |
| Product Status | Last Time Buy |
| Series | CPC Series 1 |
| Shell Finish | - |
| Shell Material | Thermoplastic |
| Shielding | - |
| Termination | Solder |
