TE ConnectivitySwitzerland

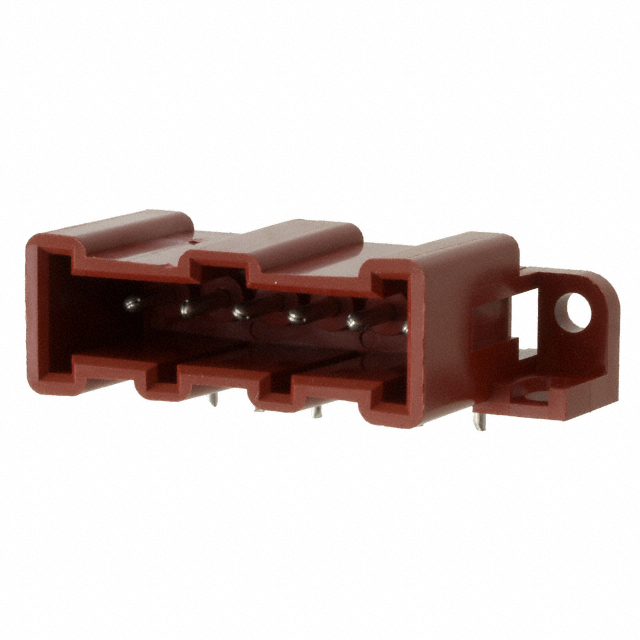

CONN HEADER R/A 6POS 5.08MM
All alternatives
View full reportTechnical parameters
Key specs
Positions6
Rows1
Pitch5.08 mm
GenderMale
Current rating7.5 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 600V |
| Environment and package | |
| Insulation Height | 0.550" (13.97mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -55°C ~ 130°C |
| Package | Tube |
| Other | |
| Applications | Automotive, General Purpose, Industrial |
| Base Product Number | 208116 |
| Connector Type | Header |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Length - Mating | - |
| Contact Length - Post | 0.120" (3.05mm) |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Mounting Flange |
| Ingress Protection | - |
| Insulation Color | Red |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Overall Contact Length | - |
| Pitch - Mating | 0.200" (5.08mm) |
| Product Status | Obsolete |
| Row Spacing - Mating | - |
| Series | Metrimate |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board or Cable |
| Termination | Solder |
