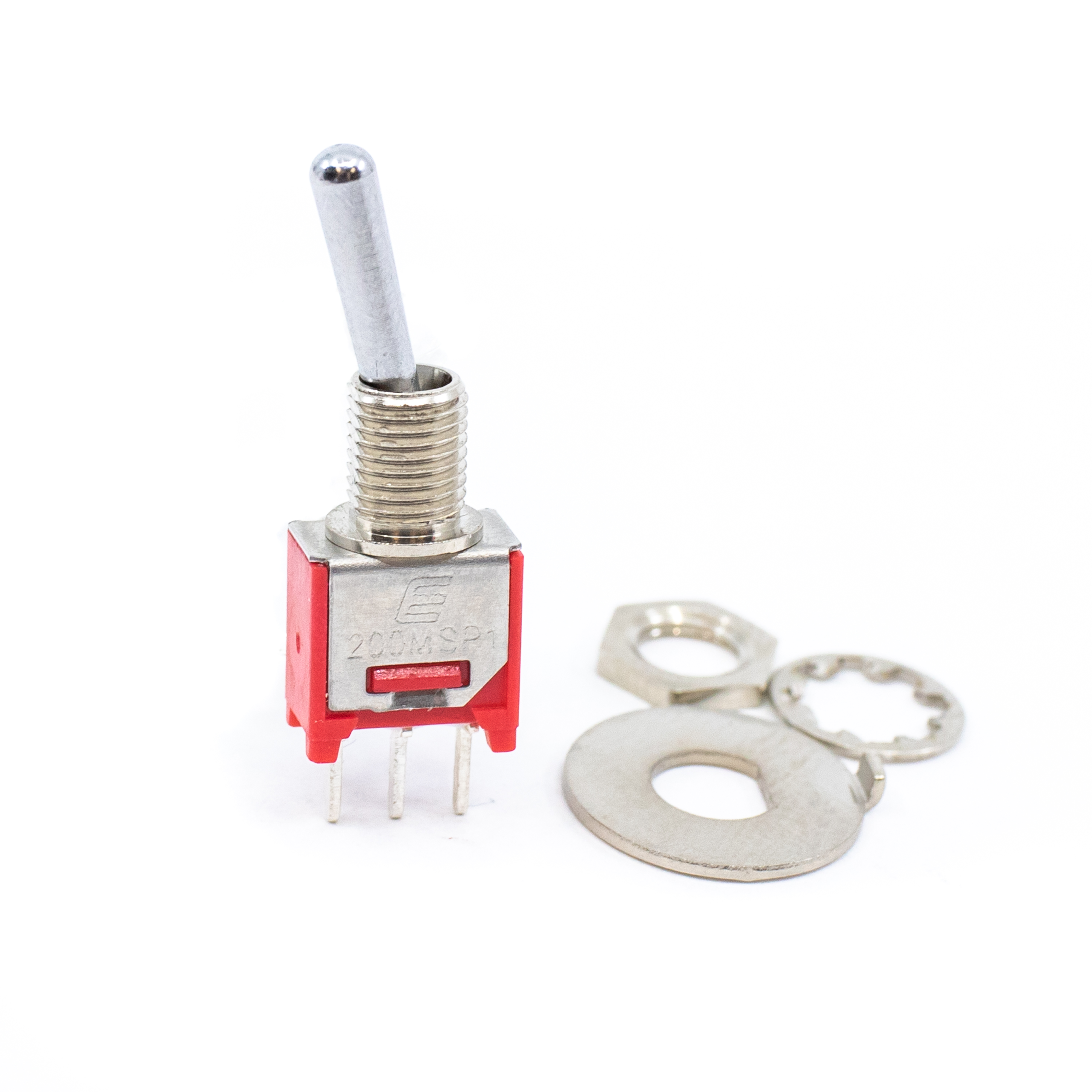

200
E-SwitchUnited States

200

ActiveToggle Switches

Panel mount or through hole, Gold - 0.4VA, 28V max. (AC or DC), Silver - 3A, 120VAC or 28VDC; UL, 1 or 2 pole; latching or momentary, Straight, rt. angle, or rt. angle vert., actuator height options, bushing options

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

CircuitSPDT
Power
Current Rating3A
Voltage Rating120VAC/28VDC
Environment and package
Actuator Height9.40mm
Mounting TypePanel Mount
Operating Temperature-40°C to 85°C
Panel Cutout DimensionsCircular - 4.95mm Dia.
Other
Actuator TypeStandard Round
Bushing10-48
CircuitSPDT
Contact MaterialSilver
FunctionOn-Off-On
PackagingBulk
Series Name200
Termination TypePC Pin

Documents

DatasheetDatasheet · 726.8 KB · 2026-09-23EnvironmentalEnvironmental · 207.2 KB · 2026-09-23EnvironmentalEnvironmental · 172.0 KB · 2026-09-23EnvironmentalEnvironmental · 112.9 KB · 2026-09-23Package DrawingPackage Drawing · 65.1 KB · 2026-09-23
