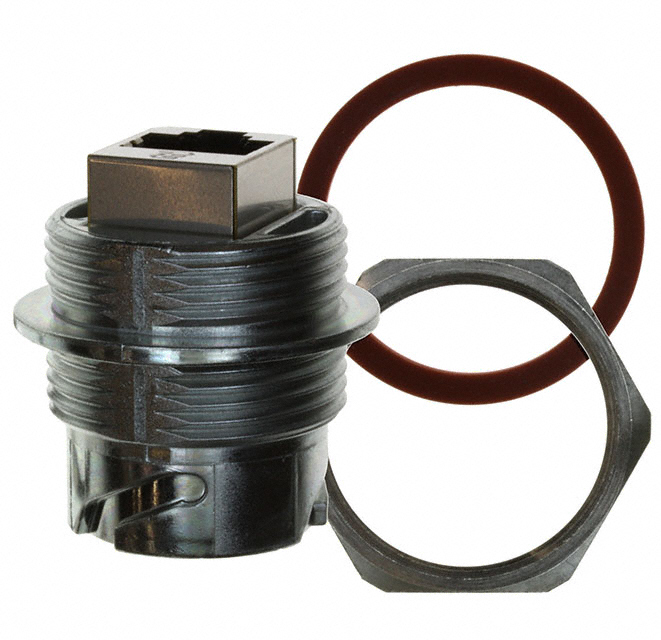

2008615-2
TE ConnectivitySwitzerland

2008615-2

ObsoleteModular Connector Adapters

CONN MOD COUPLER 8P8C TO 8P8C

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Environment and package
Mounting FeatureFront Side Nut
Mounting TypePanel Mount, Bulkhead
Operating Temperature-40°C ~ 85°C
PackageBulk
Other
Base Product Number2008615
Contact FinishGold
Contact Finish Thickness-
Contact MaterialPhosphor Bronze
Convert From (Adapter End)Jack, 8p8c (RJ45)
Convert To (Adapter End)Jack, 8p8c (RJ45)
FeaturesCircular Bayonet Coupling
Housing MaterialThermoplastic
Ingress ProtectionIP67 - Dust Tight, Waterproof
MfrTE Connectivity AMP Connectors
Product StatusObsolete
RatingsCat5e
Series-
Shell Material, FinishZinc, Trivalent Chromate Plated
ShieldingShielded
Shield MaterialBrass
TypeCoupler

Documents

No documents are linked to this part yet.
