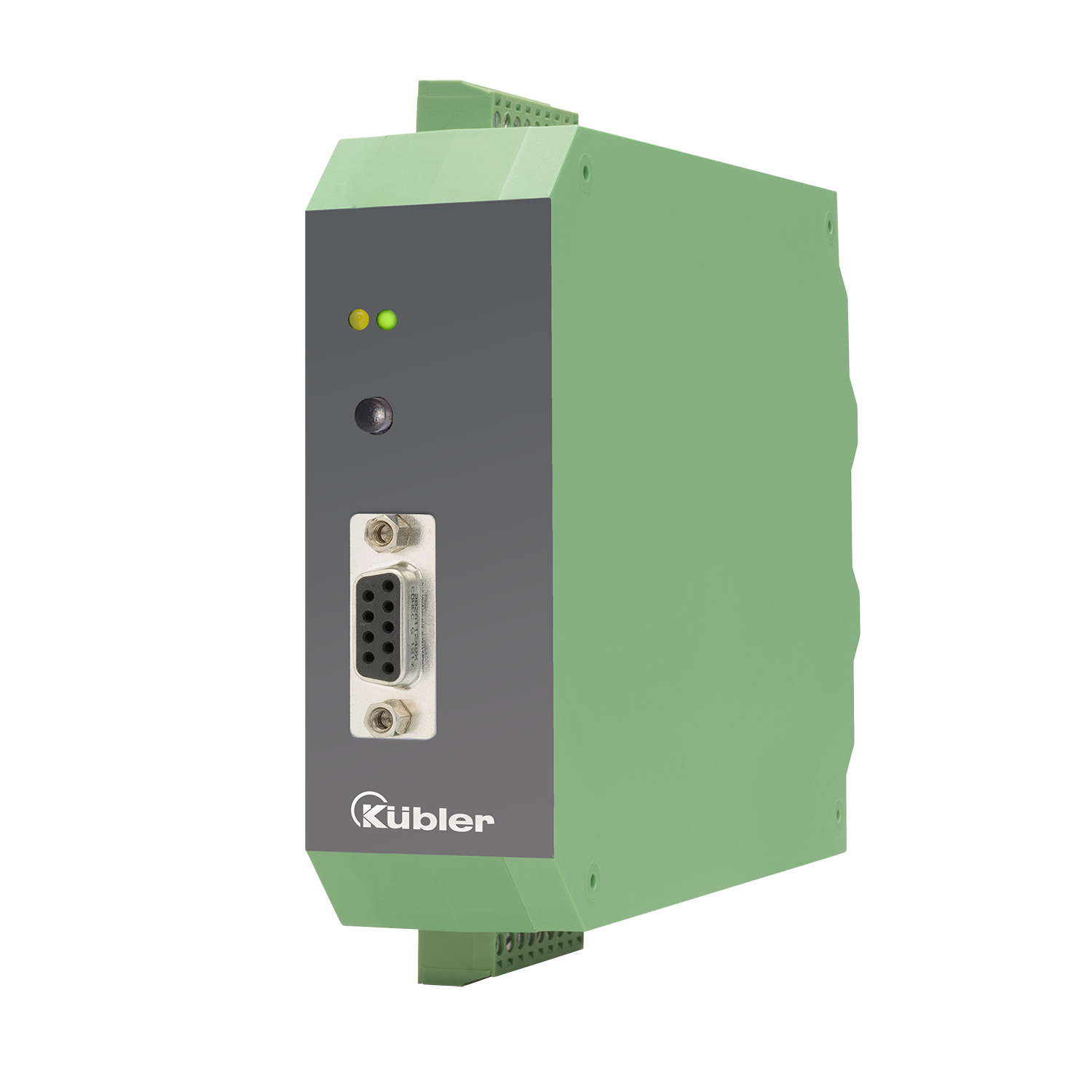

1SC-1D

Active

Signal converter – converts, multiplies, and splits output signals. SinCos, TTL / RS422 Push-Pull/HTL

All alternatives

Power
Power supply	18...30 V DC
Environment and package
Dimension	40 mm x 79 mm x 91 mm
Working temperature	0 °C ... 45 °C
Other
Connection types	Screw terminals Sub-D connector
Input interfaces	SinCos
Inputs coding	Sin+, Sin-, Cos+, Cos-, Ref+, Ref-, VM
Output interfaces	HTL TTL / RS422
Outputs coding	A, B, 0 A, A\|, B, B\|, 0, 0\|
Protection level	IP20
SK 1SC-1D PDF ∼ 1,2 MB \| 09.2025	DE EN
SK 1SC-1D PDF ∼ 750,7 KB \| 09.2025	DE EN FR
