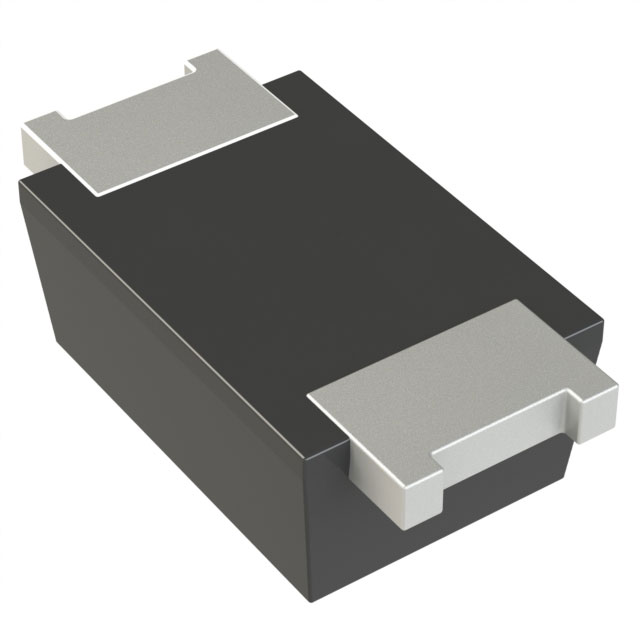

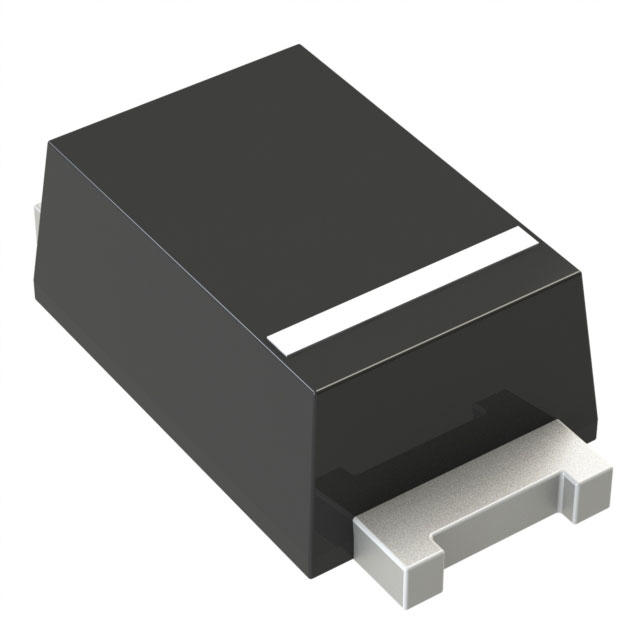

1N5819HW1-7-F
Diodes IncorporatedUnited States

1N5819HW1-7-F

ActiveSingle DiodesSOD-123F

DIODE SBR 40V 1A SOD123F

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Reverse voltage40 V
Average rectified current1 A
Forward voltage510 mVMax · 1 A
TypeFast recoveryFast Recovery =< 500ns，> 200mA (Io)
Power
Current - Average Rectified (Io)1A
Current - Reverse Leakage @ Vr500 µA @ 40 V
Voltage - DC Reverse (Vr) (Max)40 V
Voltage - Forward (Vf) (Max) @ If510 mV @ 1 A
Environment and package
Mounting TypeSurface Mount
Operating Temperature - Junction-55°C ~ 125°C
PackageTape & Reel (TR) Cut Tape (CT) Digi-Reel®
Package / CaseSOD-123F
Supplier Device PackageSOD-123F
Other
Base Product Number1N5819
Capacitance @ Vr, F30pF @ 10V, 1MHz
MfrDiodes Incorporated
Product StatusActive
Reverse Recovery Time (trr)15 ns
SeriesSBR®
SpeedFast Recovery =< 500ns, > 200mA (Io)
TechnologySuper Barrier
