onsemiUnited States

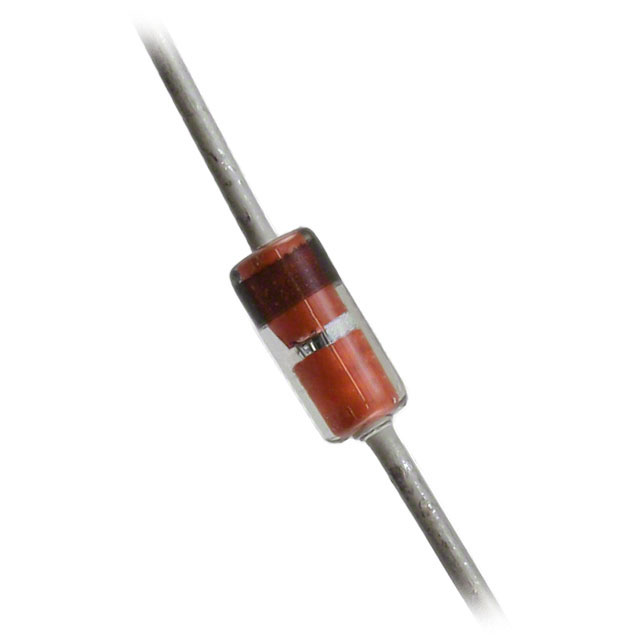

SMALL SGNL DIODE DO35 100V 175C
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage100 V
Average rectified current200 mA
Forward voltage1 VMax · 10 mA
TypeStandardSmall Signal =< 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 200mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 75 V |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Package | Bulk |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 |
| Other | |
| Base Product Number | 1N414 |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Mfr | onsemi |
| Product Status | Active |
| Reverse Recovery Time (trr) | 4 ns |
| Series | - |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Standard |
