WeidmüllerGermany

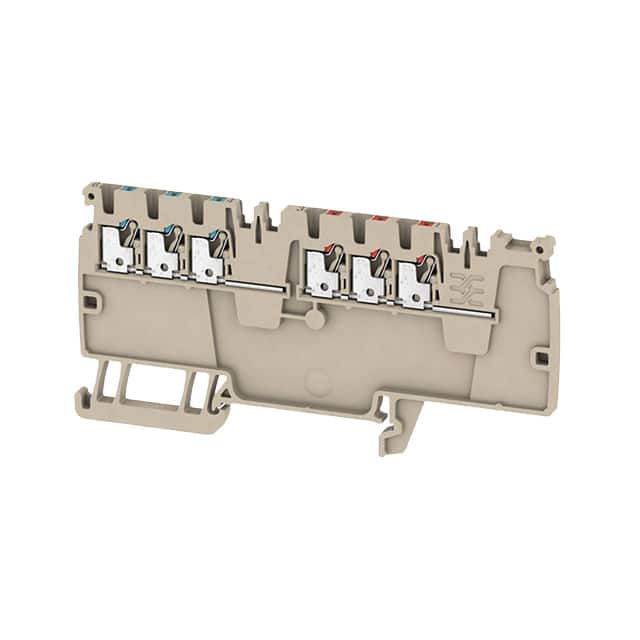

POTENTIAL DISTRIBUTOR TERMINAL,
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - IEC | 16 A |
| Current - UL | 5 A |
| Voltage - IEC | 250V |
| Voltage - UL | 300V |
| Environment and package | |
| Package | Box |
| Other | |
| Color | Beige |
| Disconnect Type | - |
| Features | - |
| Fuse Type | - |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Thermoplastic, Wemid |
| Mfr | Weidmüller |
| Number of Levels | 1 |
| Number of Positions | 6 |
| Product Status | Active |
| Series | AAP |
| Stripping Length | 8mm |
| Terminal - Width | 3.5mm |
| Termination Style | Push In |
| Type | Feed Through |
| Wire Gauge or Range - AWG | 14-26 AWG |
| Wire Gauge or Range - mm² | 0.5-1.5mm² |
