1921000000
WeidmüllerGermany

1921000000

ActiveCircular Connector Assemblies

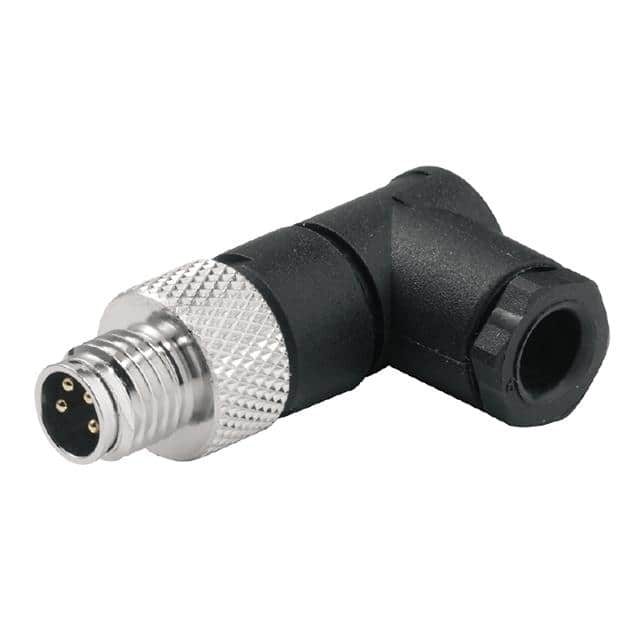

CONN PLUG MALE 4POS SOLDER CUP

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Positions4
GenderMale
Current rating4 AMax
Power
Current Rating (Amps)4A
Voltage Rating30V
Environment and package
Mounting Feature-
Mounting TypeFree Hanging (In-Line), Right Angle
Operating Temperature-40°C~85°C
PackageBulk
Shell Size - InsertM8-4
Shell Size, MIL-
Other
ApplicationsIndustrial Automation
Backshell Material, PlatingCopper Zinc
Base Product NumberSAISW
Cable Opening0.138" ~ 0.217" (3.50mm ~ 5.50mm)
ColorBlack, Silver
Connector TypePlug, Male Pins
Contact Finish - MatingGold
Contact Finish Thickness - Mating-
Contact Material-
Fastening TypeThreaded
FeaturesBackshell
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert Material-
Material Flammability Rating-
MfrWeidmüller
Number of Positions4
Orientation-
Primary MaterialMetal
Product StatusActive
SeriesSAI
Shell Finish-
Shell MaterialCopper Zinc
ShieldingUnshielded
TerminationSolder Cup
