Phoenix ContactGermany

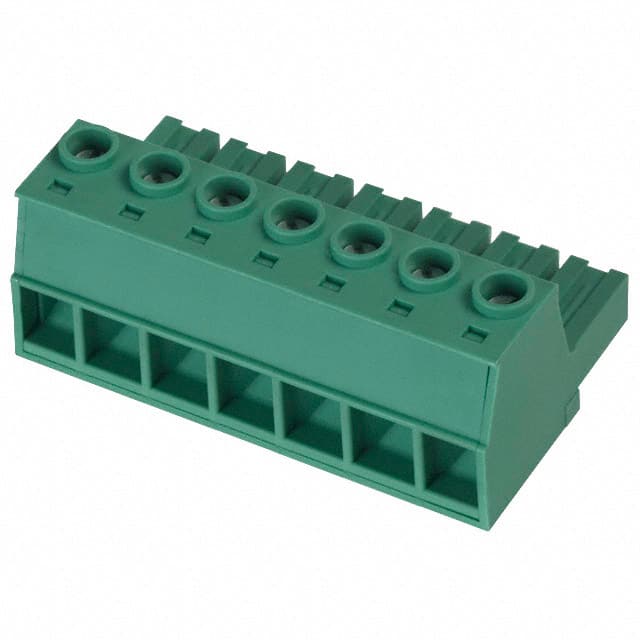

TERM BLOCK PLUG 7POS STR 10.16MM
All alternatives
View full reportTechnical parameters
Key specs
Positions7
Pitch10.16 mm
| Power | |
|---|---|
| Current - IEC | 41A |
| Current - UL | 50 A |
| Voltage - IEC | 1 kV |
| Voltage - UL | 600 V |
| Environment and package | |
| Insulation Height | 1.085" (27.55mm) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Package | Bulk |
| Screw Size | M4 |
| Other | |
| Color | Green |
| Contact Material | - |
| Contact Mating Finish | Silver |
| Contact Tail Length | - |
| Features | - |
| Header Orientation | - |
| Housing Material | Polyamide (PA), Nylon |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Phoenix Contact |
| Number of Levels | 1 |
| Number of Positions | 7 |
| Pitch | 0.400" (10.16mm) |
| Plug Wire Entry | 180° |
| Positions Per Level | 7 |
| Product Status | Active |
| Series | COMBICON PC |
| Termination Style | Screw - Rising Cage Clamp |
| Torque - Screw | 1.2-1.5 Nm (10.6-13.3 Lb-In) |
| Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 8-20 AWG |
| Wire Gauge or Range - mm² | 0.75-10mm² |
| Wire Strip Length | 12mm |
