Comair RotronUnited States

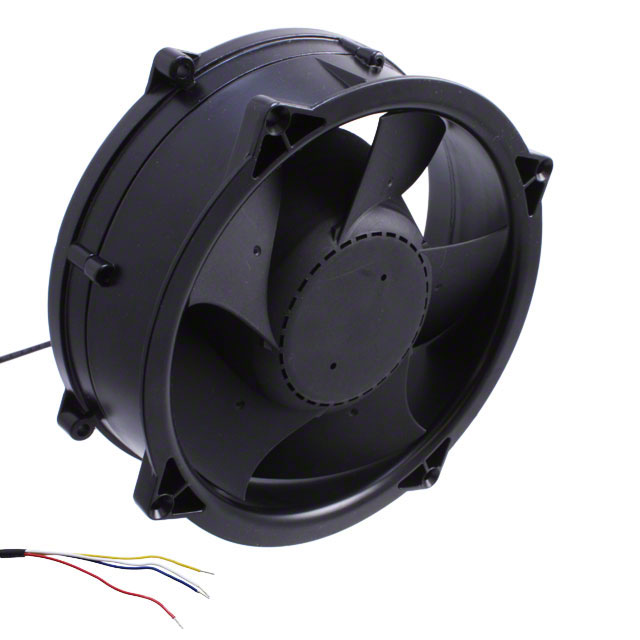

FAN AXIAL 200.7X69.9MM MFSE48Z
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 2.30A |
| Power (Watts) | 110 W |
| Voltage Range | 36 ~ 56VDC |
| Voltage - Rated | 48VDC |
| AC and DC characteristics | |
| Noise | 65.4dB(A) |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Package | Bulk |
| Size / Dimension | Round - 200.7mm Dia |
| Other | |
| Air Flow | 530.0 CFM (14.84m³/min) |
| Approval Agency | CE, UL |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Aluminum |
| Mfr | Comair Rotron |
| Product Status | Obsolete |
| RPM | 4600 RPM |
| Series | Mixtus |
| Static Pressure | 2.820 in H2O (702.5 Pa) |
| Termination | 4 Wire Leads |
| Weight | 4 lbs (1.8 kg) |
| Width | 70.00mm |
