Goford SemiconductorTaiwan, China
N200V, 18A,RD<0.16@10V,VTH1V~3V,
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage200 V
Continuous drain current18 A
On-resistance160 mΩMax · 9A
Gate threshold voltage3 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) |
| Drain to Source Voltage (Vdss) | 200 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Power Dissipation (Max) | 65.8W (Tc) |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tube |

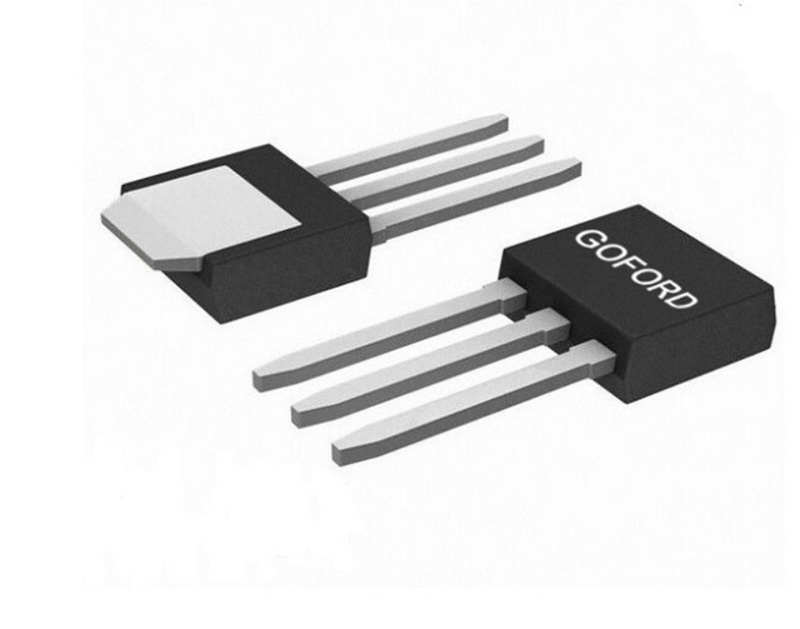

| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Supplier Device Package | TO-251 |
| Other | |
| FET Feature | Standard |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 17.7 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 836 pF @ 25 V |
| Mfr | Goford Semiconductor |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 160mOhm @ 9A, 10V |
| Series | TrenchFET® |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±30V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
