Goford SemiconductorTaiwan, China
N 200V, RD(MAX)<0.16@10V,VTH1.0V
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage200 V
Continuous drain current18 A
On-resistance160 mΩMax · 9A
Gate threshold voltage3 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 18A (Tj) |
| Drain to Source Voltage (Vdss) | 200 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Power Dissipation (Max) | 65.8W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

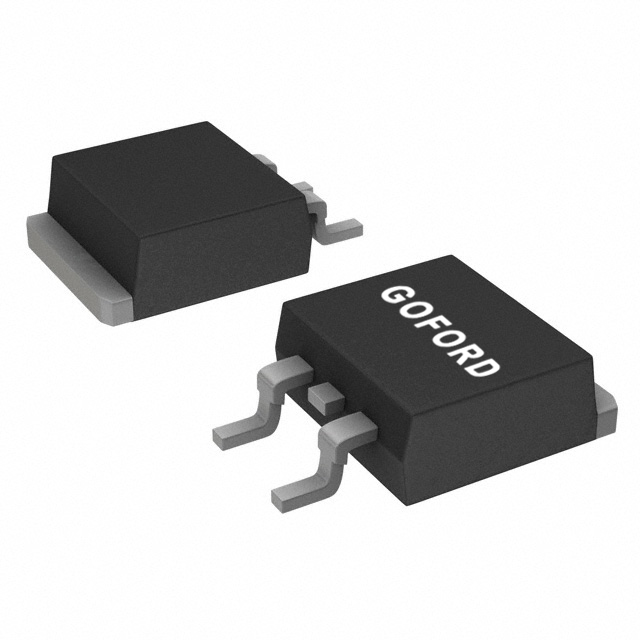

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252 |
| Other | |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 17.7 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 836 pF @ 25 V |
| Mfr | Goford Semiconductor |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 160mOhm @ 9A, 10V |
| Series | 18N20 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±30V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
