WeidmüllerGermany

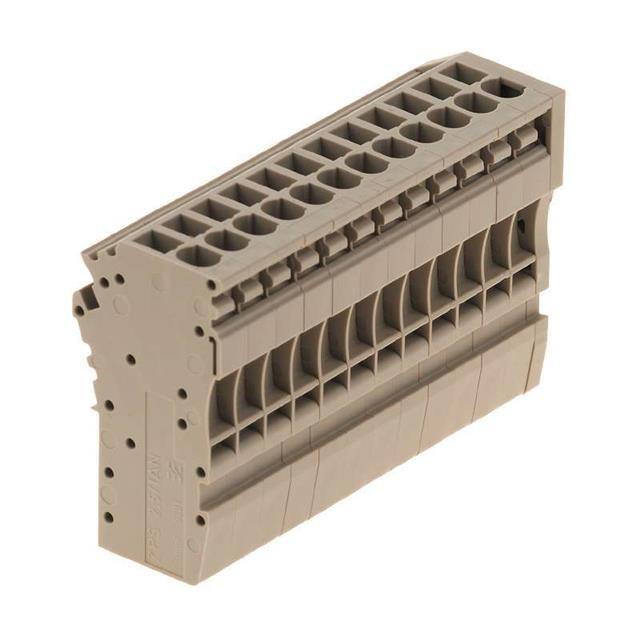

TERM BLOCK PLUG 12POS STR
All alternatives
View full reportTechnical parameters
Key specs
Positions12
| Power | |
|---|---|
| Current - IEC | 24A |
| Current - UL | 5 A |
| Voltage - IEC | 500 V |
| Voltage - UL | 600 V |
| Environment and package | |
| Insulation Height | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -50°C~120°C |
| Package | Bulk |
| Screw Size | - |
| Other | |
| Color | Beige |
| Contact Material | - |
| Contact Mating Finish | - |
| Contact Tail Length | - |
| Features | - |
| Header Orientation | - |
| Housing Material | Thermoplastic, Wemid |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Weidmüller |
| Number of Levels | 1 |
| Number of Positions | 12 |
| Pitch | - |
| Plug Wire Entry | 180° |
| Positions Per Level | 12 |
| Product Status | Active |
| Series | Z |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Torque - Screw | - |
| Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.13-4mm² |
| Wire Strip Length | 10mm |
