WeidmüllerGermany

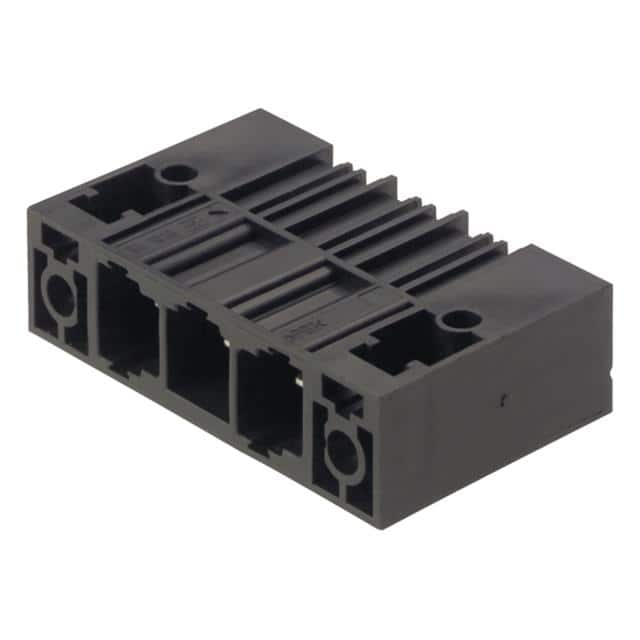

TERM BLOCK HDR 8POS 10.16MM
All alternatives
View full reportTechnical parameters
Key specs
Positions8
Pitch10.16 mm
| Power | |
|---|---|
| Current - IEC | 78.3A |
| Current - UL | 60 A |
| Voltage - IEC | 1 kV |
| Voltage - UL | 300 V |
| Environment and package | |
| Insulation Height | 0.535" (13.60mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -50°C~120°C |
| Package | Bulk |
| Screw Size | - |
| Other | |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Silver |
| Contact Tail Length | 0.138" (3.50mm) |
| Features | Mating and Mounting Flange |
| Header Orientation | 90°, Right Angle |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Weidmüller |
| Number of Levels | 1 |
| Number of Positions | 8 |
| Pitch | 0.400" (10.16mm) |
| Plug Wire Entry | - |
| Positions Per Level | 8 |
| Product Status | Active |
| Series | Omnimate SU |
| Termination Style | Solder |
| Torque - Screw | - |
| Type | Header, Blade Pins, Shrouded (4 Side) |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Wire Strip Length | - |
Documents
No documents are linked to this part yet.
