Phoenix ContactGermany

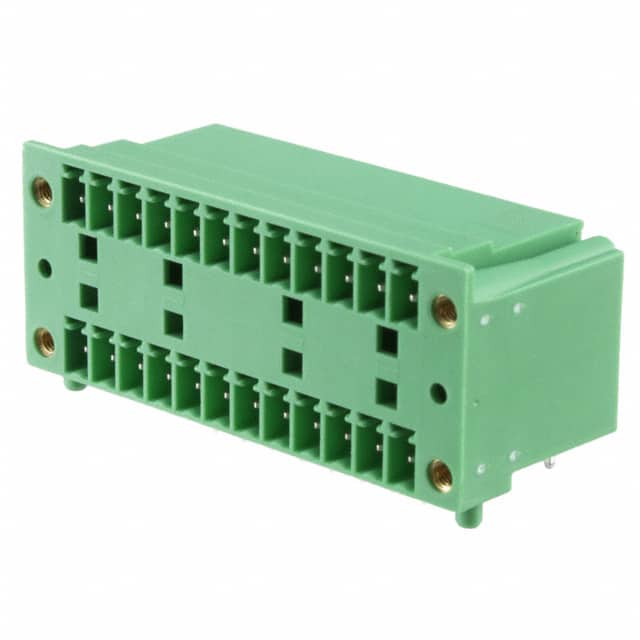

TERM BLOCK HDR 24POS 3.81MM
All alternatives
View full reportTechnical parameters
Key specs
Positions24
Pitch3.81 mm
| Power | |
|---|---|
| Current - IEC | 8A |
| Current - UL | 8 A |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
| Environment and package | |
| Insulation Height | 0.894" (22.71mm) |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |
| Screw Size | - |
| Other | |
| Color | Green |
| Contact Material | - |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.138" (3.50mm) |
| Features | Board Guide, Mating Flange |
| Header Orientation | 90°, Right Angle |
| Housing Material | Polyamide (PA), Nylon |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Phoenix Contact |
| Number of Levels | 2 |
| Number of Positions | 24 |
| Pitch | 0.150" (3.81mm) |
| Plug Wire Entry | - |
| Positions Per Level | 12 |
| Product Status | Active |
| Series | COMBICON MCD |
| Termination Style | Solder |
| Torque - Screw | - |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Wire Strip Length | - |
Documents
No documents are linked to this part yet.
