WeidmüllerGermany

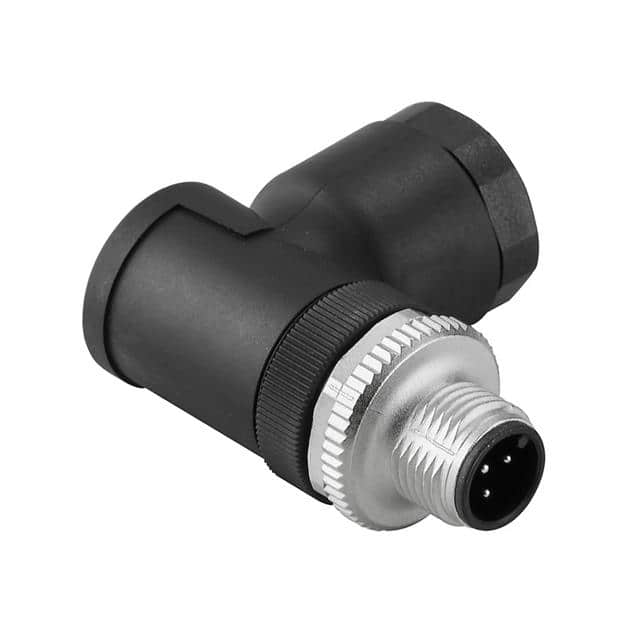

CONN RCPT MALE 5POS SCREW
All alternatives
View full reportTechnical parameters
Key specs
Positions5
GenderMale
Current rating4 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 4A |
| Voltage Rating | 36V |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -25°C~85°C |
| Package | Bulk |
| Shell Size - Insert | M12-5 |
| Shell Size, MIL | - |
| Other | |
| Applications | Industrial Automation |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Base Product Number | SAIS |
| Cable Opening | 0.217" ~ 0.315" (5.50mm ~ 8.00mm) |
| Color | Black, Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Copper Alloy |
| Contact Finish Thickness - Mating | - |
| Contact Material | - |
| Fastening Type | Threaded |
| Features | Backshell, Cable Outlets - 2 |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | - |
| Material Flammability Rating | - |
| Mfr | Weidmüller |
| Number of Positions | 5 |
| Orientation | A |
| Primary Material | Metal |
| Product Status | Active |
| Series | SAI |
| Shell Finish | - |
| Shell Material | Zinc Die Cast |
| Shielding | Unshielded |
| Termination | Screw |
