TE ConnectivitySwitzerland

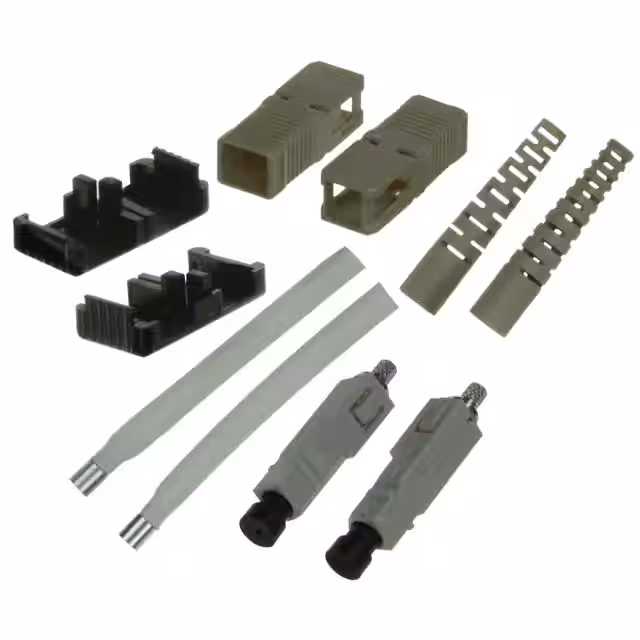

CONN FIBER SC PLUG DUPLX
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -40°C~75°C |
| Package | Bag |
| Other | |
| Attenuation - Typ | -0.2dB |
| Base Product Number | 1828574 |
| Body Material | Polyarylsulfone (PAS) |
| Boot Color | Beige |
| Cable Diameter | 2.0mm |
| Connector Style | SC |
| Connector Type | Plug |
| Fastening Type | Latch Lock |
| Features | Dust Cap, Strain Relief |
| Ferrule Material | Zirconia |
| Fiber Cladding Diameter | - |
| Fiber Core Diameter | - |
| Housing Color | Beige |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Ingress Protection | - |
| Mating Cycles | - |
| Mfr | TE Connectivity AMP Connectors |
| Mode | Multimode |
| Product Status | Active |
| Reflection | -55dB |
| Series | - |
| Simplex/Duplex | Duplex |
Documents
No documents are linked to this part yet.
