AmphenolUnited States
CONN MINI UHF PLUG STR 50 OHM
All alternatives
View full reportTechnical parameters
Key specs
GenderMale
Impedance50 Ω
Max frequency2.5 GHzMax
| Power | |
|---|---|
| Voltage Rating | 335 V |
| AC and DC characteristics | |
| Frequency - Max | 2.5 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -55°C~85°C |
| Package | Bulk |
| Other | |
| Base Product Number | 1821 |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | UHF, Mini |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Threaded |
| Features | - |
| Housing Color | Silver |

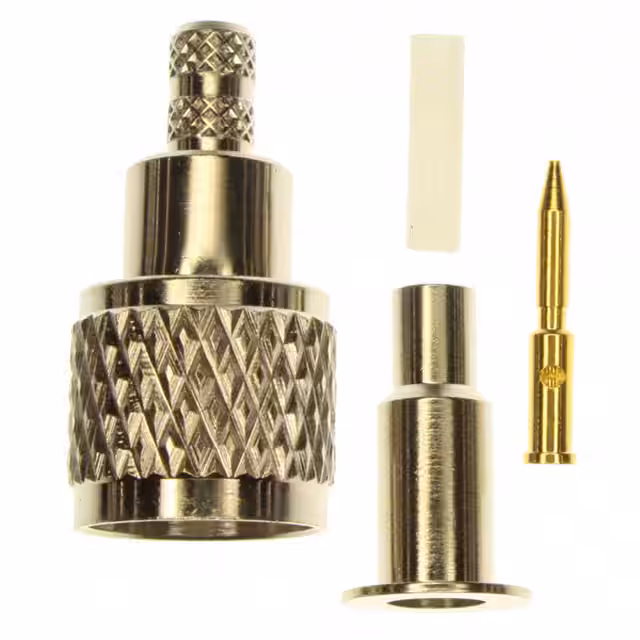

| Includes | 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 500 |
| Mfr | Amphenol RF |
| Number of Ports | 1 |
| Product Status | Obsolete |
| Series | - |
| Shield Termination | Crimp |
