AmphenolUnited States
CONN MINI UHF PLUG STR 50 OHM
All alternatives
View full reportTechnical parameters
Key specs
GenderMale
Impedance50 Ω
Max frequency2.5 GHzMax
| Power | |
|---|---|
| Voltage Rating | 335 V |
| AC and DC characteristics | |
| Frequency - Max | 2.5 GHz |
| Impedance | 50 Ohms |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -55°C ~ 85°C |
| Package | Bag |
| Other | |
| Base Product Number | 1821 |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | UHF, Mini |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | - |
| Housing Color | Silver |

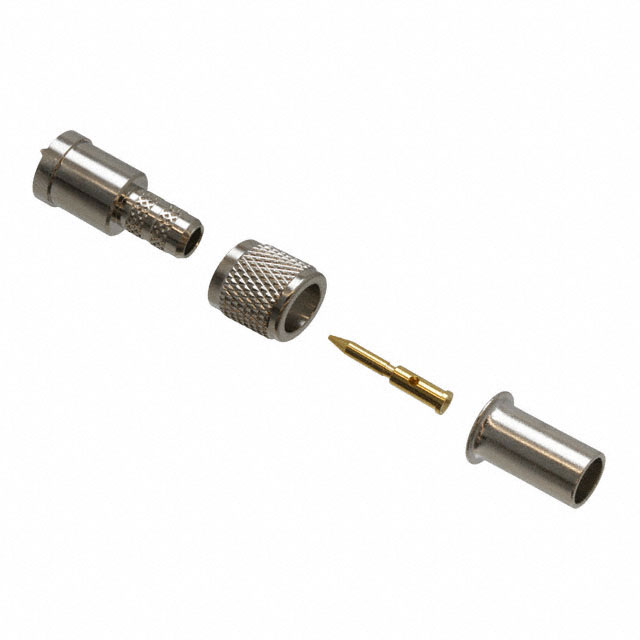

| Includes | 4 pcs - 1 Connector, 1 Contact, 1 Coupling Nut, 1 Ferrule |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 500 |
| Mfr | Amphenol RF |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Crimp |
