FIXED IND 1MH 440MA 1 OHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance1 mH
Rated current440 mAMax
DC resistance1 ΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 440 mA |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | 1.6MHz |
| Inductance Frequency - Test | 50 kHz |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C~70°C |
| Package | Bulk |
| Package / Case | Axial |

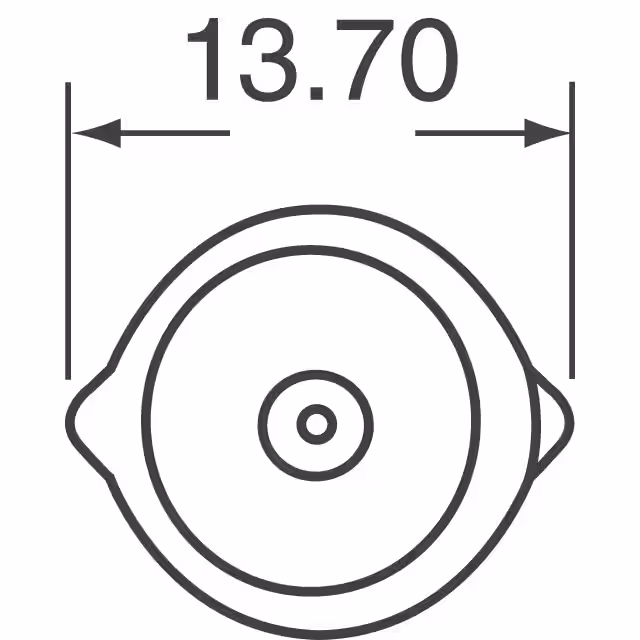

| Size / Dimension | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) |
| Supplier Device Package | - |
| Other | |
| Base Product Number | 18 |
| DC Resistance (DCR) | 1Ohm Max |
| Inductance | 1 mH |
| Material - Core | - |
| Mfr | Murata Power Solutions Inc. |
| Product Status | Obsolete |
| Q @ Freq | 94 @ 50kHz |
| Ratings | - |
| Series | 1800 |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Type | Wirewound |
