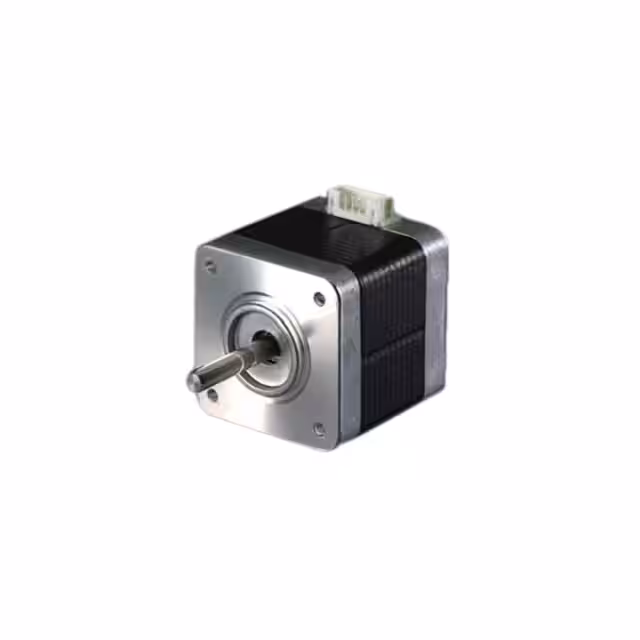

STEPPER MOTOR HYBRID BIPOLAR 24V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 600 mA |
| Voltage - Rated | 24VDC |
| AC and DC characteristics | |
| Accuracy | - |
| Environment and package | |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| NEMA Frame Size | 17 |
| Operating Temperature | - |
| Package | Bulk |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| Other | |
| Approval Agency | - |
| Coil Resistance | 5.4 Ohms |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.197" (5.00mm) |
| Features | Round Shaft |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Mfr | NMB Technologies Corporation |
| Product Status | Obsolete |
| Rotor Inertia | 24gcm² |
| Series | 17PM |
| Step Angle | 1.8° |
| Steps per Revolution | 200 |
| Termination Style | Connector |
| Torque - Holding (oz-in / mNm) | 22.66 / 160 |
| Type | Hybrid |
| Weight | 0.397 lb (180.08 g) |
