View full reportTechnical parameters

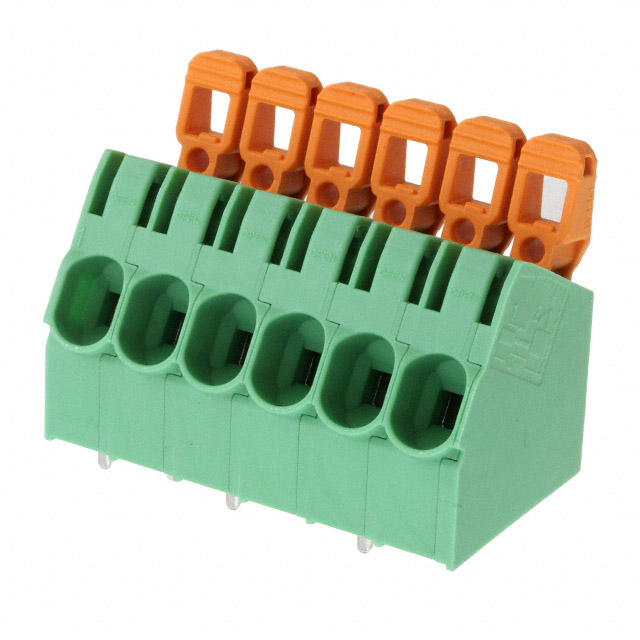

Key specs
Pitch7.5 mm
| Power | |
|---|---|
| Current | 41 A |
| Voltage | 1 kV |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Other | |
| Clamp Material - Plating | - |
| Color | Green |
| Contact Material - Plating | - |
| Features | Lever Actuated |
| Housing Material | Polyamide (PA), Nylon |
| Manufacturer | Phoenix Contact |
| Mating Orientation | 30° (150°) Angle with Board |
| Number of Levels | 1 |
| Packaging | Bulk |
| Part Status | Obsolete |
| Pitch | 0.295" (7.50mm) |
| Positions Per Level | 6 |
| Screw Material - Plating | - |
| Screw Thread | - |
| Series | COMBICON PLA |
| Torque - Screw | - |
| Wire Gauge | 10-24 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
Documents
No documents are linked to this part yet.
