Phoenix ContactGermany

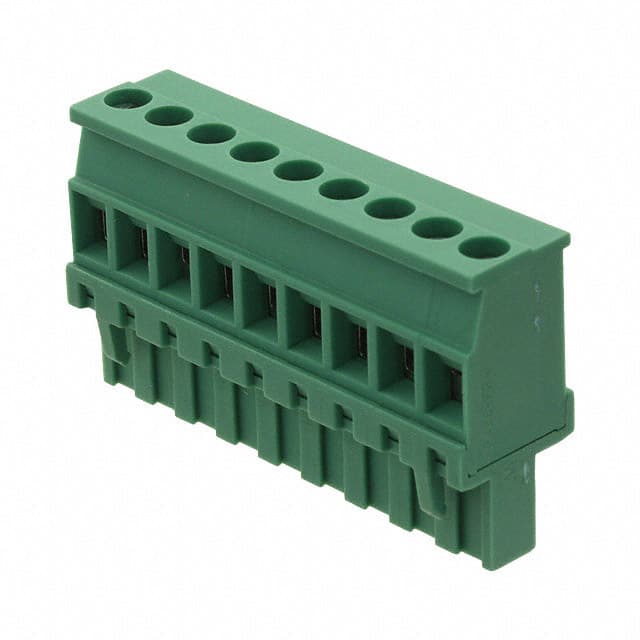

TERM BLOCK PLUG 9POS 90DEG 5MM
All alternatives
View full reportTechnical parameters
Key specs
Positions9
Pitch5 mm
| Power | |
|---|---|
| Current - IEC | 12A |
| Current - UL | 15 A |
| Voltage - IEC | 630 V |
| Voltage - UL | 300 V |
| Environment and package | |
| Insulation Height | 1.024" (26.01mm) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Package | Bulk |
| Screw Size | M3 |
| Other | |
| Color | Green |
| Contact Material | - |
| Contact Mating Finish | Tin |
| Contact Tail Length | - |
| Features | Retention Latches (Wire Side) |
| Header Orientation | - |
| Housing Material | Polyamide (PA), Nylon |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Phoenix Contact |
| Number of Levels | 1 |
| Number of Positions | 9 |
| Pitch | 0.197" (5.00mm) |
| Plug Wire Entry | 90° |
| Positions Per Level | 9 |
| Product Status | Active |
| Series | COMBICON MVSTBR |
| Termination Style | Screw - Rising Cage Clamp |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Strip Length | 7mm |
