3MUnited States

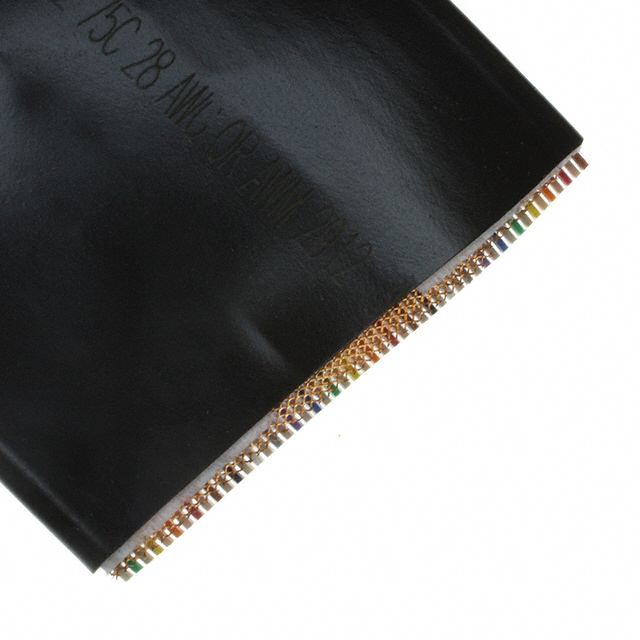

CBL RIBN 50COND TWIST-PAIR 50'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 150 V |
| Environment and package | |
| Operating Temperature | -20°C ~ 80°C |
| Package | Bulk |
| Other | |
| Cable Type | Flat Twisted Pair, Flat Jacket |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7 Strands / 36 AWG |
| Features | Splice Free |
| First Conductor Mark | - |
| Insulation Resistance | 1GOhms |
| Jacket Color | Black |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length | 50.0' (15.24m) |
| Mfr | 3M |
| Number of Conductors | 50 (25 Pair Twisted) |
| Pitch | 0.050" (1.27mm) |
| Product Status | Active |
| Ratings | UL Style 2912 |
| Ribbon Thickness | 0.120" (3.05mm) |
| Ribbon Width | 2.630" (66.80mm) |
| Series | 1785 |
| Shielding | Shielded |
| Wire Gauge | 28 AWG |
