TE ConnectivitySwitzerland

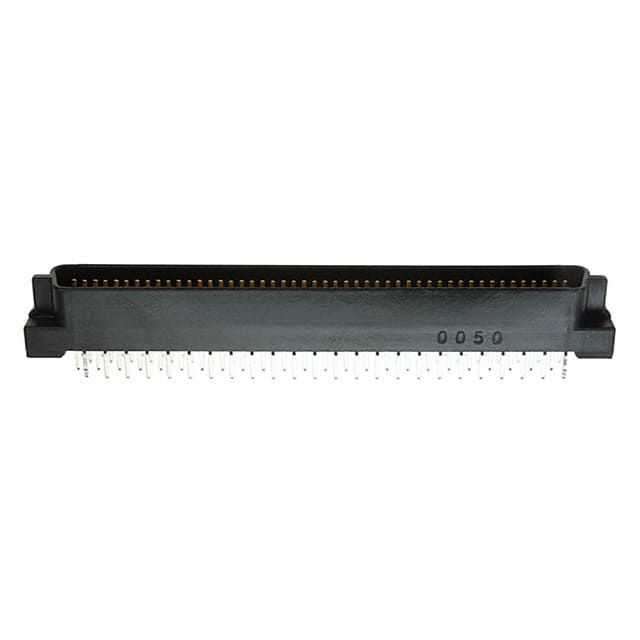

CONN D-TYPE CAP 96P VERT KINKED
All alternatives
View full reportTechnical parameters
Key specs
Positions96
Rows2
GenderMale
Current rating1 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1A |
| Voltage Rating | 100V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
| Other | |
| Backset Spacing | - |
| Base Product Number | 174683 |
| Color | Black |
| Connector Style | D-Type, Board to Board |
| Connector Type | Cap, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Contact Form | - |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Dielectric Material | Thermoplastic |
| Features | - |
| Flange Feature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 96 |
| Number of Rows | 2 |
| Product Status | Obsolete |
| Series | AMPLIMITE .050 I |
| Shell Material, Finish | - |

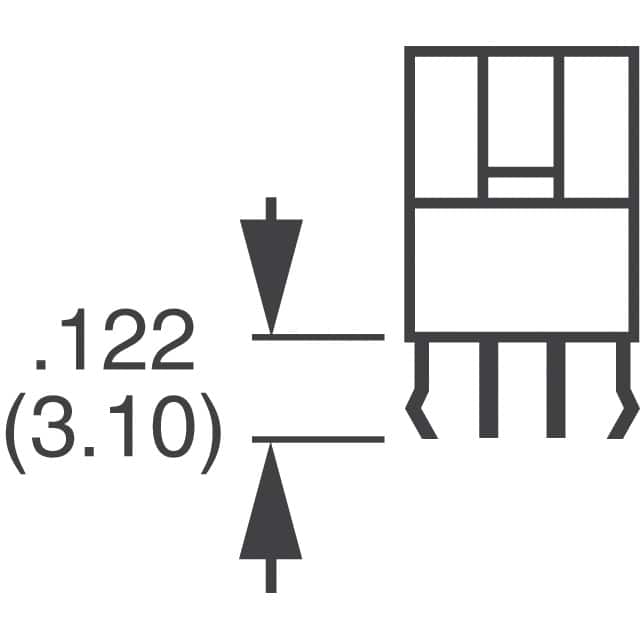

| Termination | Kinked Pin |
| Wire Gauge | - |
