TE ConnectivitySwitzerland

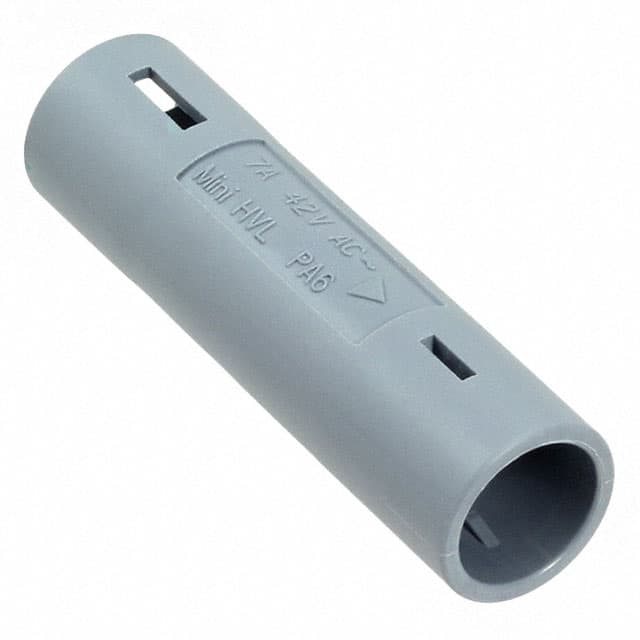

CONN SSL OUTLET HSG 2POS 3.6MM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 7A |
| Voltage Rating | 42V |
| Environment and package | |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -40°C~120°C |
| Package | Bulk |
| Other | |
| Base Product Number | 1740451 |
| Connector Type | Outlet Housing for Pin Contact |
| Contact Finish | - |
| Contact Material | - |
| Fastening Type | - |
| Features | Keying HV-1 |
| Housing Color | Gray |
| Housing Material | Polyamide (PA6), Nylon 6 |
| Ingress Protection | - |
| Mating Cycles | - |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 2 |
| Pitch | 0.142" (3.60mm) |
| Product Status | Obsolete |
| Series | Nector S |
| Style | Cable/Wire to Cable/Wire or Board |
| Termination | Crimp |
| Wire Gauge | - |
