WeidmüllerGermany

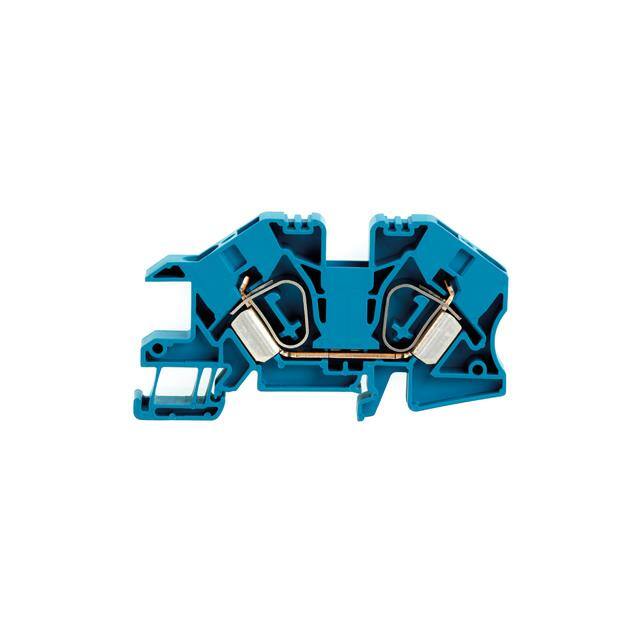

CONN TERM BLK FEED THRU 6-16 AWG
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - IEC | 57 A |
| Current - UL | 60 A |
| Voltage - IEC | 400V |
| Voltage - UL | 600V |
| Environment and package | |
| Package | Bulk |
| Other | |
| Color | Blue |
| Disconnect Type | - |
| Features | - |
| Fuse Type | - |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Thermoplastic, Wemid |
| Mfr | Weidmüller |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Product Status | Active |
| Series | Z |
| Stripping Length | 18mm |
| Terminal - Width | 10.0mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Wire Gauge or Range - AWG | 6-16 AWG |
| Wire Gauge or Range - mm² | 1.5-16mm² |
