1736C

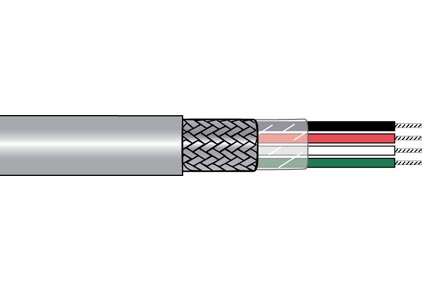

ActiveAlpha Wire 22 AWG, 2 Conductor Communication Cable provides precise signal transmission for computer and control applications
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 300 V RMS |
| AC and DC characteristics | |
| 4) Characteristic Impedance | 56 Ω |
| Environment and package | |
| 1) Temperature Range | -20 to 80°C |
| Other | |
| (1) Color Code | Alpha Wire Color Code D |
| 1) Component 1 | 2 x 1 COND |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Cable Assembly | 2 Components Cabled |
| 2) Capacitance | 38 pF/ft @1 kHz, Nominal Conductor-to-Conductor |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more detail. |
| 3) CE | EU Low Voltage Directive 2014/35/EU |
| 3) Ground Capacitance | 68 pF/ft @1 kHz, Nominal |
| 3) Pull Tension | 13.6 lbs. (max.) |
| 3) Shield | Bare Copper BRAID Shield, 75% Coverage, Nom. |
| 5) Inductance | 0.2 μH/ft, Nominal |
| 6) Conductor DCR | 16.3 Ω/1000ft @20°C, Nominal |
| 7) OA Shield DCR | 7.6 Ω/1000ft @20°C, Nominal |
| 80°C / 300 V RMS | 75°C |
| a) 1000 FT | 12 x 10.5 x 5 Continuous Length |
| a) Color(s) | SLATE |
| a) Twists | 6.9 Twists/foot (min.) |
| AWM/STYLE 2095 | CM |
| b) 500 FT | 10.5 x 5 x 3.5 Continuous Length |
| b) Orientation | Components to be arranged from INSIDE LAYER-to-OUTSIDE LAYER |
| b) Print | ALPHA WIRE-* P/N 1736C 2C 22 AWG SHIELDED 75C (UL) TYPE CM OR AWM 2095 OR C(UL) TYPE CMG FT4 CE ROHS * = Factory Code Note: Product may have c(UL) or CSA markings depending upon plant of manufacture. |
| c) 100 FT | 6.5 x 4 x 2.5 Continuous Length |
| c) Core Wrap | Clear Mylar Tape, 25% Overlap (min.) |
| CM | 75°C |
| Color | BLACK |
| Cond | 1 |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
