Alpha WireUnited States

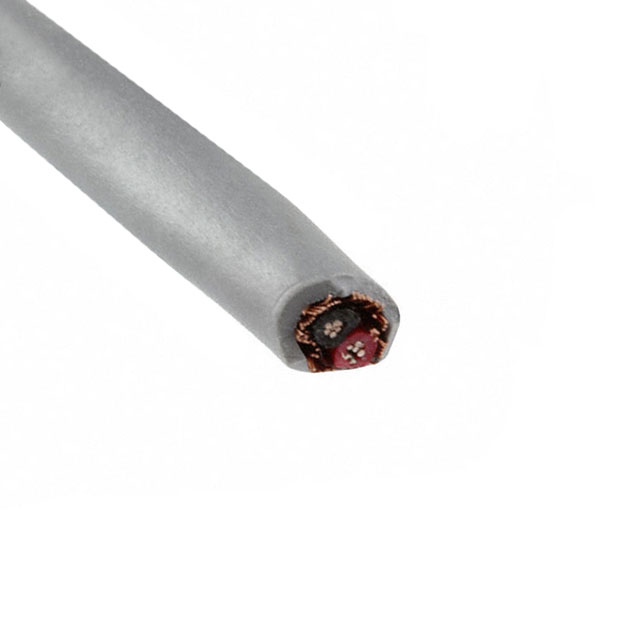

CABLE 2CON 22AWG SLATE SHLD 100'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | -20°C ~ 80°C |
| Package | Spool |
| Other | |
| Base Product Number | 1736C |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7/30 |
| Features | - |
| Jacket Color | Slate |
| Jacket (Insulation) Diameter | 0.189" (4.80mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.0200" (0.508mm) |
| Length | 100.0' (30.5m) |
| Mfr | Alpha Wire |
| Number of Conductors | 2 |
| Product Status | Active |
| Ratings | - |
| Series | - |
| Shield Coverage | 75% |
| Shield Material | Copper, Bare |
| Shield Type | Braid |
| Usage | Communication, Control |
| Wire Gauge | 22 AWG |
